Roadside Data Cabinet

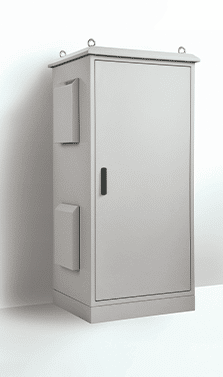

Field Cabinets – Aluminium

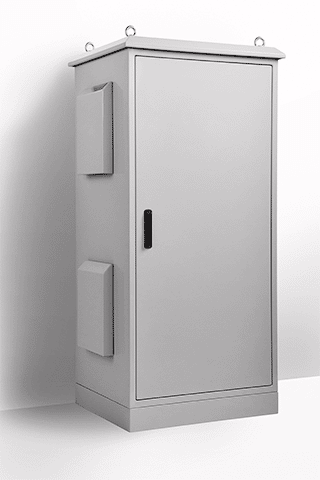

Plinth-Mounted Aluminium Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.

Features and Specifications

Protection: Complies with IP66 (Excluding cutouts for fans/filters. Vent hoods covering fan/filter cutouts IP55)
Standard: IEC62208, IEC/EN/AS60529, EIA-310-D


– Body and Plinth: 2.5mm Marine Grade Aluminium
– Doors: 2.5mm Marine Grade Aluminium
– 19” Data Rack Rails: 1.5mm 316 Stainless Steel
– Gland Plate: 5.0mm Aluminium
– Enclosure Seal: Polyurethane

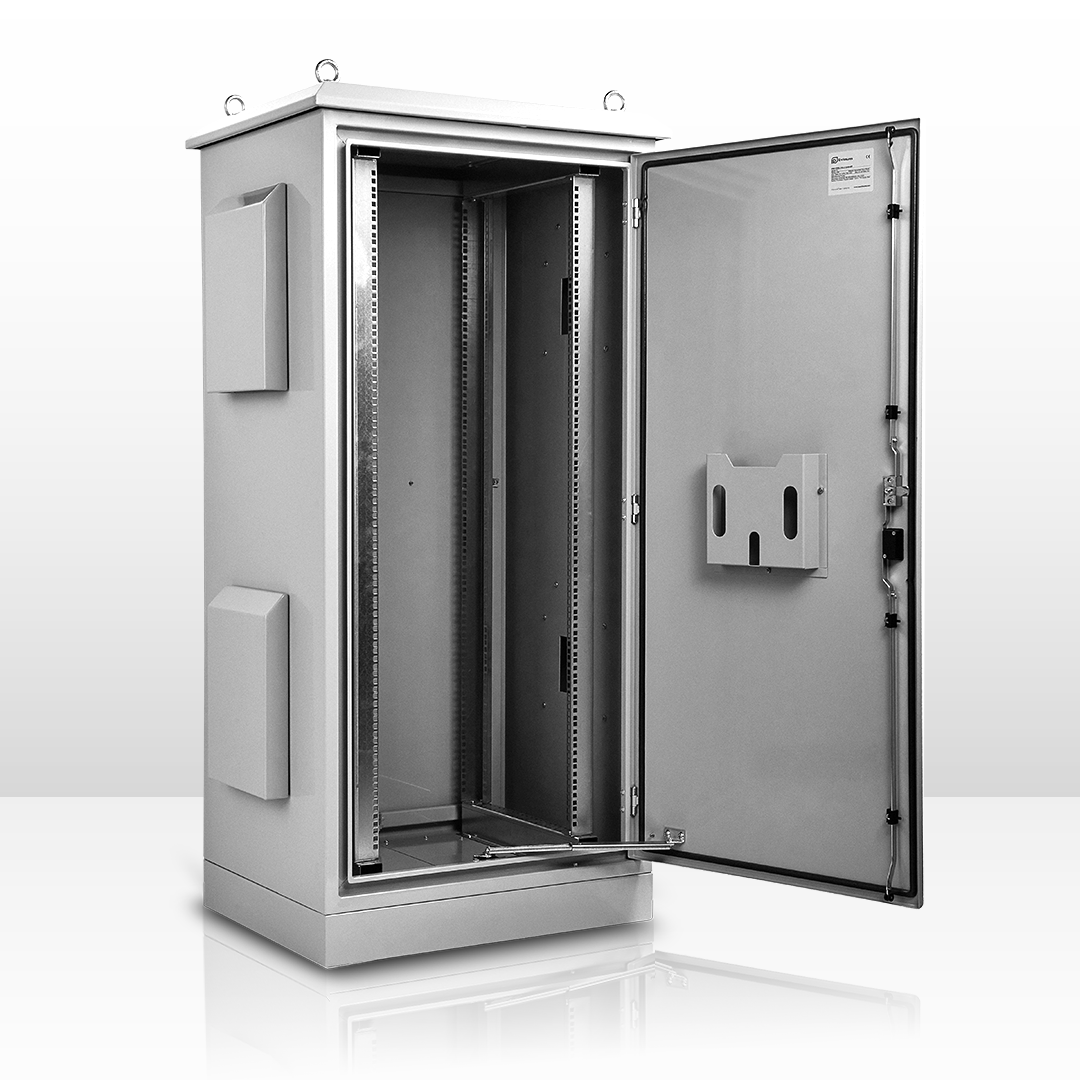

The robust monoblock body is fabricated using 2.5mm marine grade aluminium. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 5.0 mm aluminium split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).


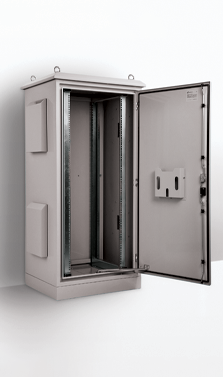

The front and rear doors are fabricated using 2.5mm marine grade aluminium and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.

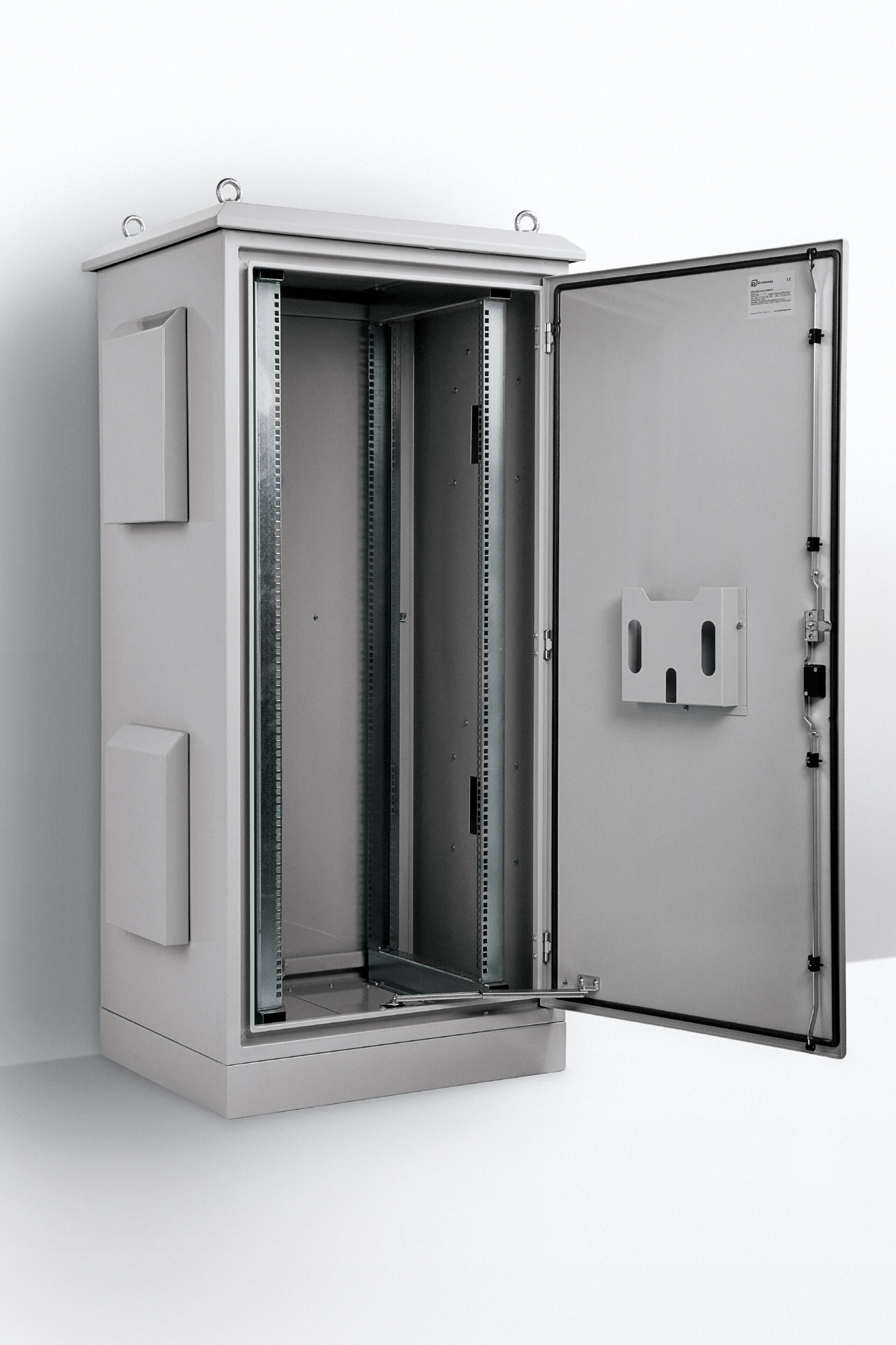

19″ Data Rack Rails:

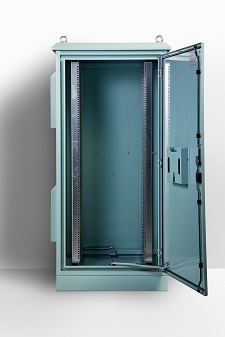

Front and rear 19″ data rack rails are fabricated from 1.5mm grade 316 stainless steel.


High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.


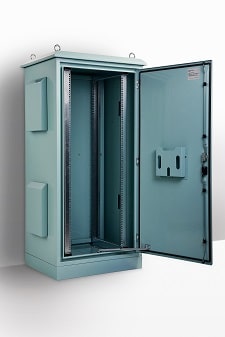

Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

5mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.

Surface Treatment:

UL approved epoxy polyester powder-coated with a smooth finish. 80-120 micron average thickness.


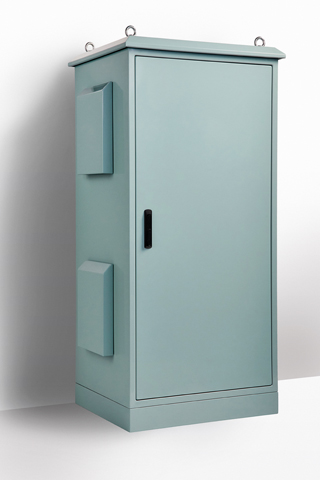

T33 Smoke Blue. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

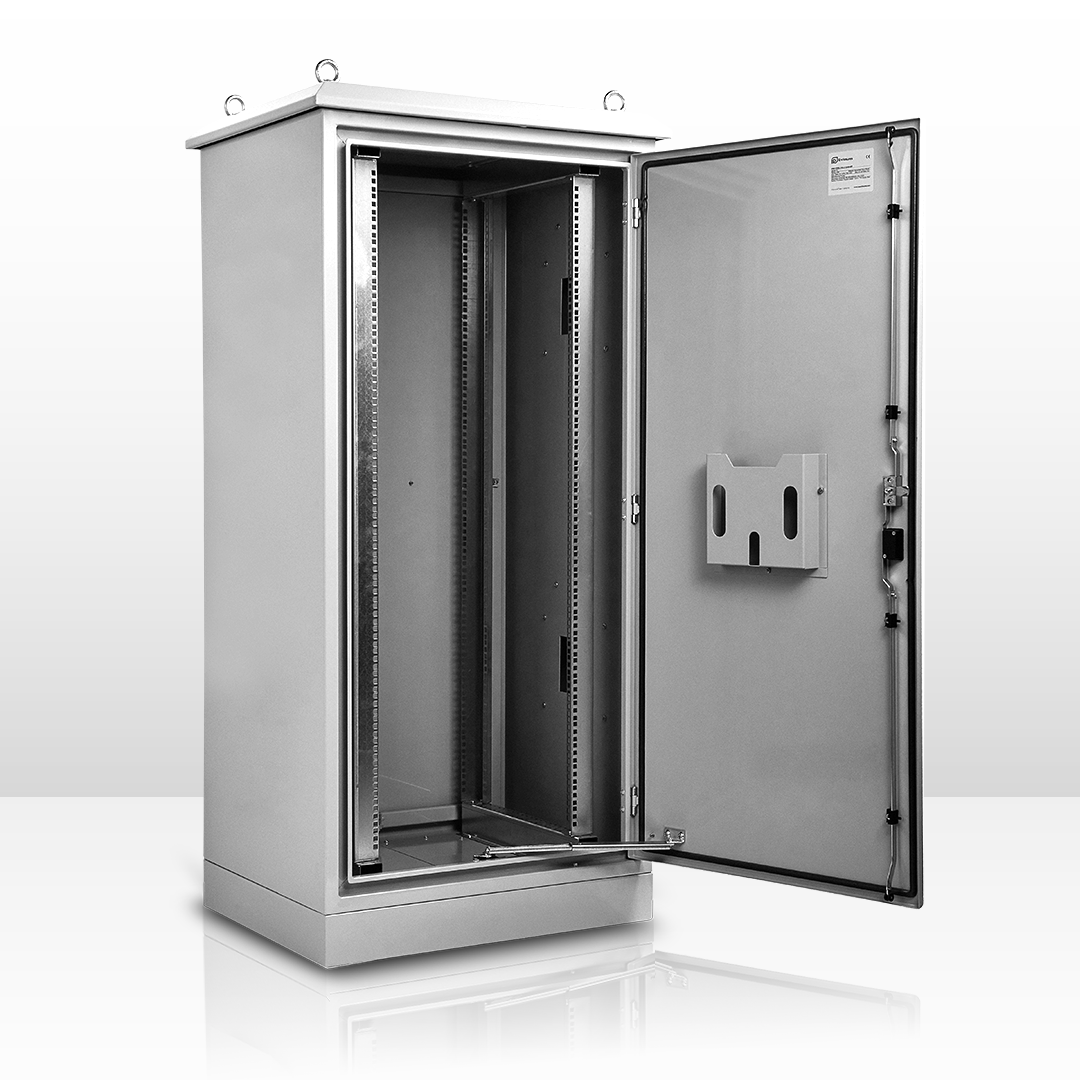

IP Enclosures - Infrastructure Field Cabinet
IP Enclosures - Infrastructure Field Cabinet

Standard Sizes

Part NumberDescriptionDownloadDownloadDownload
SKUSizeData SheetDrawing*.dwg
IP-A1377562-T3324RU IP66 Field Cabinet 1375H x 750W x 620D Aluminium, T33 Smoke BluePDFPDF.dwg
IP-A1677562-T3330RU IP66 Field Cabinet 1675H x 750W x 620D Aluminium, T33 Smoke BluePDFPDF.dwg
IP-A1977562-T3336RU IP66 Field Cabinet 1975H x 750W x 620D Aluminium, T33 Smoke BluePDFPDF.dwg
IP-A2277562-T3342RU IP66 Field Cabinet 2275H x 750W x 620D Aluminium, T33 Smoke BluePDFPDF.dwg


Part NumberDescription
IP-FCSHL7562Shelf to suit Field Cabinet, White
IP-FCDRAWERLaptop Drawer to suit Field Cabinet, White
IP-FCPPA3-T33A3 Plan Pocket for Field Cabinets, T33 Smoke Blue
IP-13762-DPDevice Plate to suit 1375H x620D Field Cabinet
IP-16762-DPDevice Plate to suit 1675H x620D Field Cabinet
IP-19762-DPDevice Plate to suit 1975H x620D Field Cabinet
