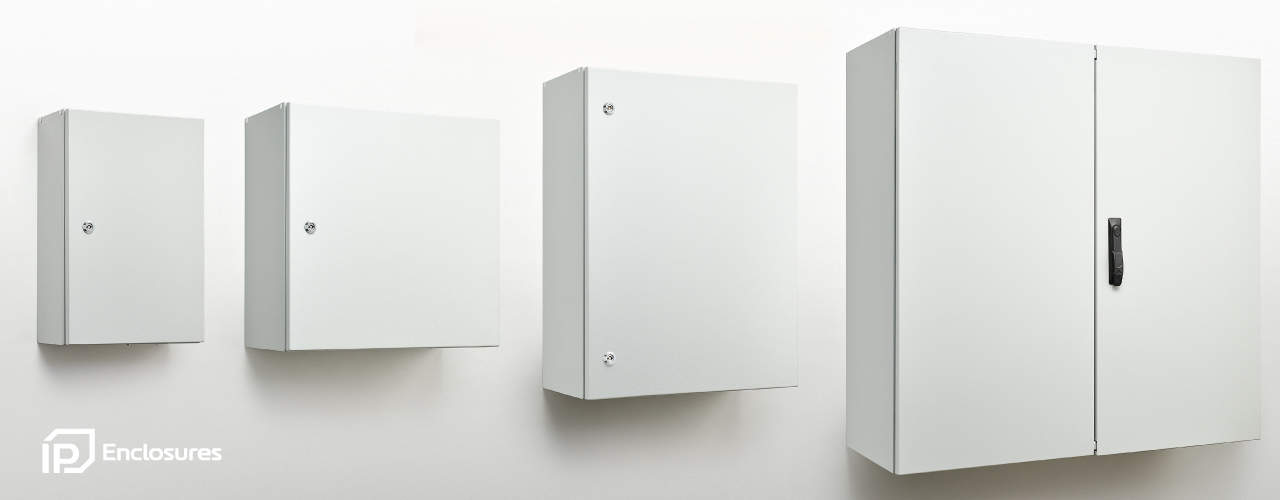

Electrical enclosures are designed to house a variety of electrical switch and control equipment. The powdercoated galvanised steel range is suitable for internal and external installations. This range of electrical enclosures complies to IEC62208 and IEC/EN/AS60529 up to IP66 IK10 and NEMA 4 certified by an independent accredited test laboratory and are suitable for up to 1000 V AC at frequencies not exceeding 1000 Hz or 1500 V DC. This range of electrical enclosures incorporates many advanced design features as standard inclusions and have been chosen by many organisations as their standard electrical enclosure system. A full range of sizes are available. Select the size you require and download the full range of electrical enclosure data sheets and drawings. Complete the quote request form and one of our team will contact you to provide a price.

IP66 Electrical Enclosures

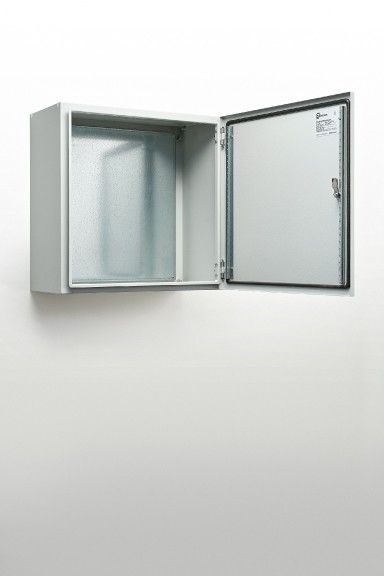

The S1 range of electrical enclosures are rated for protection up to IP66. This range is wall-mounted, powder-coated galvanised steel, single door construction suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.2mm galvanised steel sheet (up to 700x500x250) 1.5mm galvanised steel sheet (800x600x200 and above)
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is galvanised steel sheet (1.2mm-1.5mm). Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included. A galvanised steel gland plate is also incorporated into the bottom face.

Enclosure Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Enclosure Lock:

A full range of locking solutions are available upon request.
– 3mm double bit insert quarter turn lock with key.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Incorporates many advanced features as standard inclusions

  • Fabricated using ‘galvanised’ steel sheet to prevent rust if powdercoating is damaged
  • Incorporates flat sealing face to improve seal life
  • Includes door cable rails
  • Includes ‘nutsert rivnuts’ for mounting brackets and accessories to retain IP rating
  • Includes mounting points for accessories including inner door escutcheons, rain hoods etc.

Quick Quote

6 + 1 =

Electrical Enclosure

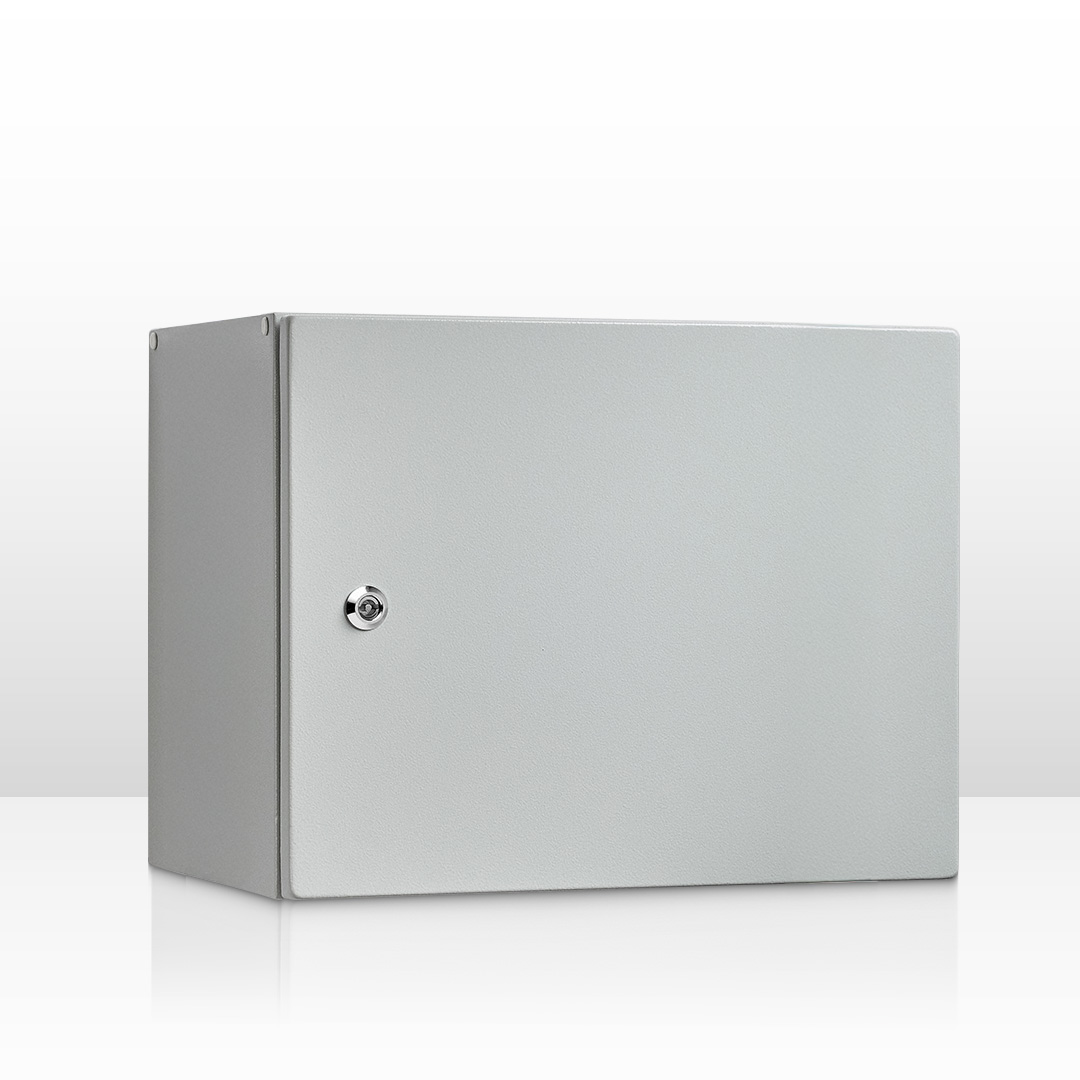

IP66 Electrical Enclosure

IP66 Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-302015300 x 200 x 1501PDFPDF.dwgIP-PSID3020IP-PSRH2015
IP-303015300 x 300 x 1501PDFPDF.dwgIP-PSID3030IP-PSRH3015
IP-303020300 x 300 x 2001PDFPDF.dwgIP-PSID3030IP-PSRH3020
IP-403015400 x 300 x 1501PDFPDF.dwgIP-PSID4030IP-PSRH3015
IP-403020400 x 300 x 2001PDFPDF.dwgIP-PSID4030IP-PSRH3020
IP-404020400 x 400 x 2001PDFPDF.dwgIP-PSID4040IP-PSRH4020
IP-503015500 x 300 x 1501PDFPDF.dwgIP-PSID5030IP-PSRH3015
IP-503020500 x 300 x 2001PDFPDF.dwgIP-PSID5030IP-PSRH3020
IP-504020500 x 400 x 2001PDFPDF.dwgIP-PSID5040IP-PSRH4020
IP-504025500 x 400 x 2501PDFPDF.dwgIP-PSID5040IP-PSRH4025
IP-505020500 x 500 x 2001PDFPDF.dwgIP-PSID5050IP-PSRH5020
IP-505025500 x 500 x 2501PDFPDF.dwgIP-PSID5050IP-PSRH5025
IP-604020600 x 400 x 2002PDFPDF.dwgIP-PSID6040IP-PSRH4020
IP-604025600 x 400 x 2502PDFPDF.dwgIP-PSID6040IP-PSRH4025
IP-606020600 x 600 x 2002PDFPDF.dwgIP-PSID6060IP-PSRH6020
IP-606030600 x 600 x 3002PDFPDF.dwgIP-PSID6060IP-PSRH6030
IP-606040600 x 600 x 4002PDFPDF.dwgIP-PSID6060IP-PSRH6040
IP-705020700 x 500 x 2002PDFPDF.dwgIP-PSID7050IP-PSRH5020
IP-705025700 x 500 x 2502PDFPDF.dwgIP-PSID7050IP-PSRH5025
IP-804030800 x 400 x 3002PDFPDF.dwgIP-PSID8040IP-PSRH4030
IP-806020800 x 600 x 2002PDFPDF.dwgIP-PSID8060IP-PSRH6020
IP-806025800 x 600 x 2502PDFPDF.dwgIP-PSID8060IP-PSRH6025
IP-806030800 x 600 x 3002PDFPDF.dwgIP-PSID8060IP-PSRH6030
IP-808020800 x 800 x 2002PDFPDF.dwgIP-PSID8080IP-PSRH8020
IP-808030800 x 800 x 3002PDFPDF.dwgIP-PSID8080IP-PSRH8030
IP-808040800 x 800 x 4002PDFPDF.dwgIP-PSID8080IP-PSRH8040
IP-10060251000 x 600 x 2502PDFPDF.dwgIP-PSID10060IP-PSRH6025
IP-10060301000 x 600 x 3002PDFPDF.dwgIP-PSID10060IP-PSRH6030
IP-10080301000 x 800 x 3002PDFPDF.dwgIP-PSID10080IP-PSRH8030
IP-10080401000 x 800 x 4002PDFPDF.dwgIP-PSID10080IP-PSRH8040
IP-12060301200 x 600 x 3002PDFPDF.dwgIP-PSID12060IP-PSRH6030
IP-12080301200 x 800 x 3002PDFPDF.dwgIP-PSID12080IP-PSRH8030
IP-12080401200 x 800 x 4002PDFPDF.dwgIP-PSID12080IP-PSRH8040

IP66 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-L304015300 x 400 x 1501PDFPDF.dwgIP-PSID3040IP-PSRH4015
IP-L304020300 x 400 x 2001PDFPDF.dwgIP-PSID3040IP-PSRH4020
IP-L406020400 x 600 x 2001PDFPDF.dwgIP-PSID4060IP-PSRH6020
IP-L406030400 x 600 x 3001PDFPDF.dwgIP-PSID4060IP-PSRH6030
IP-L608030600 x 800 x 3002PDFPDF.dwgIP-PSID6080IP-PSRH8030

IP55 Electrical Enclosures

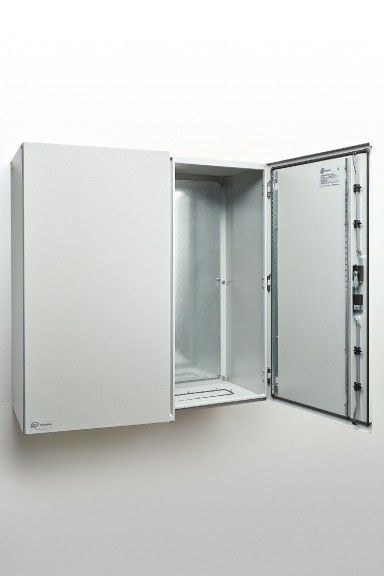

The S2 range of electrical enclosures are rated for protection up to IP55. This range is wall-mounted, powder-coated galvanised steel, double door construction suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP55 IK10, NEMA 4 (Independent accredited test laboratory).

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.5mm galvanised steel sheet
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Finish:

Powdercoated RAL7035 (Other colours available upon request)

Enclosure Body:

The robust monoblock body is 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included. A galvanised steel gland plate is also incorporated into the bottom face.

Enclosure Double Doors:

The surface mounted doors are fabricated using 1.5mm galvanised steel sheet. They incorporate concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. Doors are designed for a 110° opening. Each door contains integral cable management rail studs and M6 earth studs. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provide excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Enclosure Lock:

A full range of locking solutions are available upon request. Standard locks are as follows:
– 3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

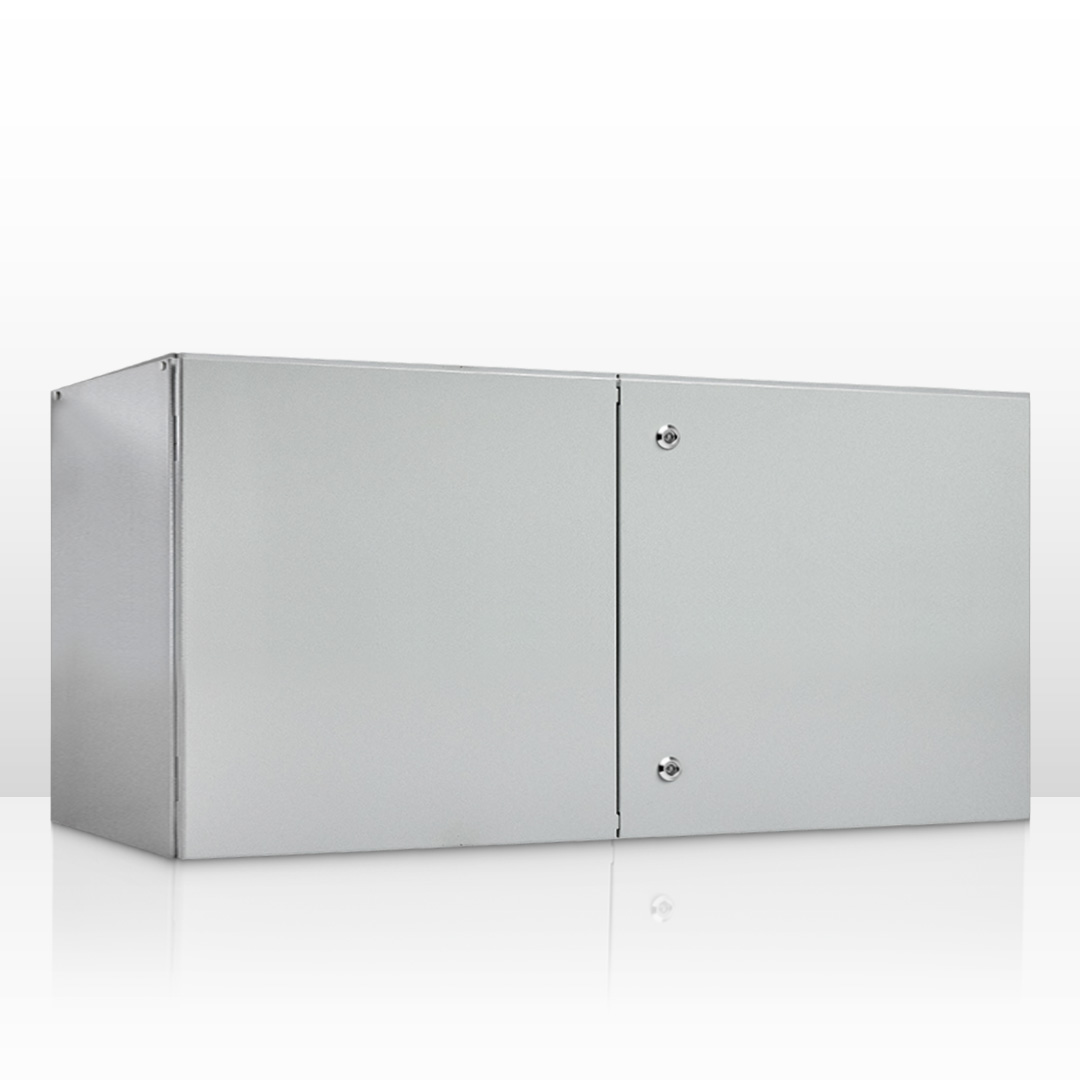

IP55 Electrical Enclosure
Electrical Enclosure Detail

IP55 Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-100100301000 x 1000 x 3003-PointPDFPDF.dwgIP-PSID100100IP-PSRH10030
IP-100100401000 x 1000 x 4003-PointPDFPDF.dwgIP-PSID100100IP-PSRH10040
IP-120100301200 x 1000 x 3003-PointPDFPDF.dwgIP-PSID120100IP-PSRH10030
IP-120100401200 x 1000 x 4003-PointPDFPDF.dwgIP-PSID120100IP-PSRH10040
IP-120120301200 x 1200 x 3003-PointPDFPDF.dwgIP-PSID120120IP-PSRH12030
IP-120120401200 x 1200 x 4003-PointPDFPDF.dwgIP-PSID120120IP-PSRH12040

IP55 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-L4010030400 x 1000 x 3003-PointPDFPDF.dwgIP-PSID40100IP-PSRH10030
IP-L4010040400 x 1000 x 4003-PointPDFPDF.dwgIP-PSID40100IP-PSRH10040
IP-L6010030600 x 1000 x 3003-PointPDFPDF.dwgIP-PSID60100IP-PSRH10030
IP-L6010040600 x 1000 x 4003-PointPDFPDF.dwgIP-PSID60100IP-PSRH10040
IP-L4012030400 x 1200 x 3003-PointPDFPDF.dwg-IP-PSRH12030
IP-L4012040400 x 1200 x 4003-PointPDFPDF.dwg-IP-PSRH12040
IP-L6012030600 x 1200 x 3003-PointPDFPDF.dwg-IP-PSRH12030
IP-L6012040600 x 1200 x 4003-PointPDFPDF.dwg-IP-PSRH12040
