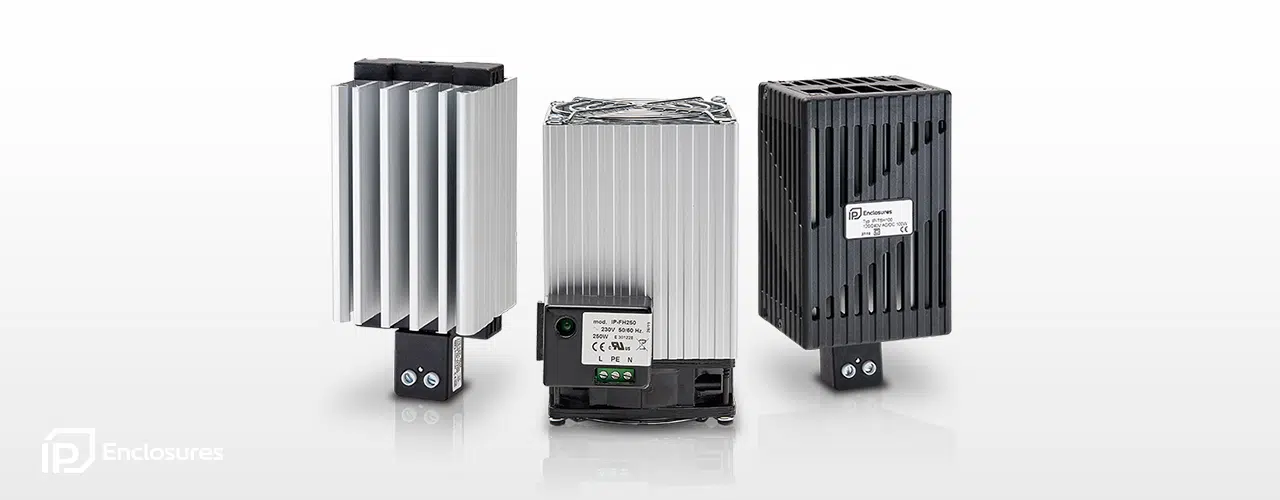

Electrical Enclosure Heaters

Anti-condensation Heaters

IP Enclosures provide a wide range of heating products for electrical enclosures. Anti-condensation heaters are required to prevent failures or corrosion caused by low temperatures or high humidity inside the enclosure. This occurs when ambient temperature is low and the equipment does not generate enough heat to maintain the minimum internal temperature. IP Enclosures heating products are manufactured to the highest quality in Italy.

IP Enclosures – Thermal Management Brochure

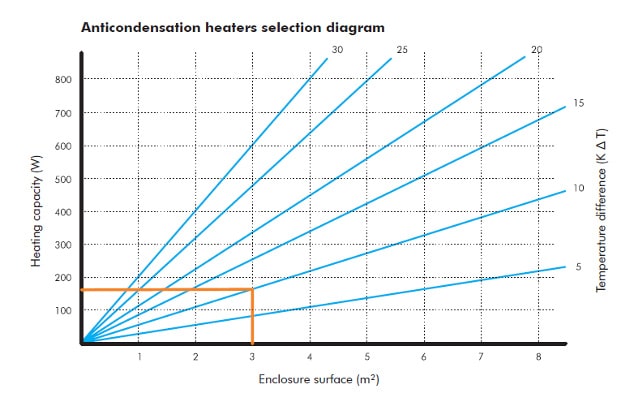

Heating Diagram
Heating CapacityDimensionsOrdering InformationData SheetStep FileSHOP
Watts(mm)230V24V DCIntegrated ThermostatPDF.stp
Compact Heaters
25W128 x 59 x 61IP-H25IP-H25.001PDF.stpBuy
50W100 x 40 x 40 IP-H50IP-H50.24IP-H50.001PDF.stpBuy
75W140 x 59 x 61IP-H75IP-H75.001PDF.stpBuy
100W140 x 59 x 61IP-H100IP-100.24IP-H100.001PDF.stpBuy
150W 220 x 59 x 61IP-H150IP-H150.001PDF.stpBuy
Heaters with Touch Shield
25W125 x 41 x 41IP-TSH25IP-TSH25.001PDF.stpBuy
50W125 x 41 x 41IP-TSH50IP-TSH50.001PDF.stpBuy
75W140 x 63 x 70IP-TSH75IP-TSH75.001PDF.stpBuy
100W140 x 63 x 70IP-TSH100IP-TSH100.001PDF.stpBuy
150W220 x 63 x 70IP-TSH150IP-TSH150.001PDF.stpBuy
Fan-Assisted Heaters
250W135 x 112 x 82IP-FH250PDF.stpBuy
400W165 x 112 x 82IP-FH400PDF.stpBuy
500W165 x 112 x 82IP-FH500PDF.stpBuy
750W225 x 112 x 82IP-FH750PDF.stpBuy

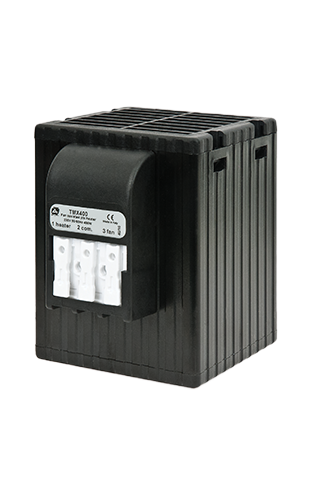

Fan-Assisted (Small Footprint) Heaters
150W88 x 66 x 97IP-TMX150PDF.stp
250W88 x 66 x 97IP-TMX250PDF.stp
300W88 x 66 x 97IP-TMX300PDF.stp
400W88 x 66 x 97IP-TMX400PDF.stp

Compact Heater – H Range

Compact heaters with minimum DIN rail foot-print.

IP-H75 Electrical Enclosure Heater

IP-H25 – 25W Heater 128 x 59 x 61 (mm)

Features Unit IP-H25
Heating Capacity* W 25
Power supply V 120-240V AC or DC
Inrush current A 2.5
Delayed fuse (advised) A 4
Heating element type PTC resistor self regulating
Electrical connections screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 128x59x61
Weight kg 0.24(0.26)
Conformity CE
*at 10°C (50°F) ambient

IP-H50 – 50W Heater 140 x 59 x 61 (mm)

Features Unit IP-H50
Heating Capacity* W 50
Power supply V 120-240V AC or DC
Inrush current A 3.5
Delayed fuse (advised) A 4
Heating element type PTC resistor self regulating
Electrical connections screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 110x59x61
Weight kg 0.24(0.28)
Conformity CE – UL File n. E301228
*at 10°C (50°F) ambient temperature
IP-H75 – 75W Heater 140 x 59 x 61 (mm)
Features Unit IP-H75
Heating Capacity* W 75
Power supply V 110-250V AC or DC
Inrush current A 4
Delayed fuse (advised) A 6.3
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 140x59x61
Weight kg 0.34
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-H100 – 100W Heater 140 x 59 x 61 (mm)
Features Unit IP-H100
Heating Capacity* W 100
Power supply V 110-250V AC or DC
Inrush current A 5
Delayed fuse (advised) A 8
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 140x59x61
Weight kg 0.34
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-H150 – 150W Heater 220 x 59 x 61 (mm)
Features Unit IP-H150
Heating Capacity* W 150
Power supply V 110-250V AC or DC
Inrush current A 9.5
Delayed fuse (advised) A 10
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 220x59x61
Weight kg 0.57
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



Heater with Touch Shield – TSH Range

Optimised design to achieve lower surface temperature and increased heat transfer efficiency.

IP-TSH25 Electrical Enclosure Heater
IP-TSH25 – 25W Heater 125 x 41 x 41 (mm)
Features Unit IP-TSH25
Heating Capacity* W 25
Power supply V 110-250V AC or DC
Inrush current A 2.5
Delayed fuse (advised) A 4
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile with plastic cover
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 125x41x41
Weight kg 0.16
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-TSH50 – 50W Heater 125 x 41 x 41 (mm)
Features Unit IP-TSH50
Heating Capacity* W 50
Power supply V 110-250V AC or DC
Inrush current A 3.5
Delayed fuse (advised) A 4
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile with plastic cover
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 125x41x41
Weight kg 0.16
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-TSH75 – 75W Heater 140 x 63 x 70 (mm)
Features Unit IP-TSH75
Heating Capacity* W 75
Power supply V 110-250V AC or DC
Inrush current A 4
Delayed fuse (advised) A 6.3
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile with plastic cover
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 140x63x70
Weight kg 0.39
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-TSH100 – 100W Heater 140 x 63 x 70 (mm)
Features Unit IP-TSH100
Heating Capacity* W 100
Power supply V 110-250V AC or DC
Inrush current A 5
Delayed fuse (advised) A 8
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile with plastic cover
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 140x63x70
Weight kg 0.39
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature



IP-TSH150 – 150W Heater 220 x 63 x 70 (mm)
Features Unit IP-TSH150
Heating Capacity* W 150
Power supply V 110-250V AC or DC
Inrush current A 9.5
Delayed fuse (advised) A 10
Heating element type PTC resistor self regulating
Electrical connections 2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -45/+70 (-49/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Radiator Extruded aluminium profile with plastic cover
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best efficiency in vertical position
Dimensions HxWxD mm 220x63x70
Weight kg 0.66
Conformity CE – UL  cruus
*at 20°C (68°F) ambient temperature

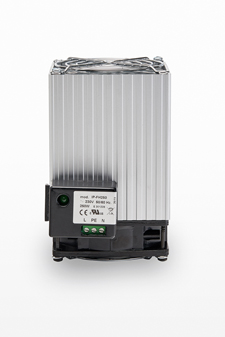

Fan Assisted Heater – FH Range

Fan assisted, resistor heaters.

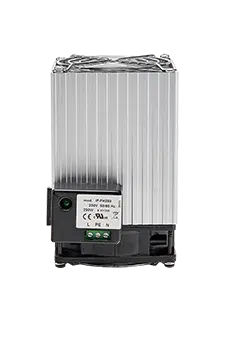

Electrical Enclosure Heater
IP-FH250 – 250W Heater 135 x 112 x 82 (mm)
Features Unit IP-FH250
Heating Capacity W 250
Power supply V/Hz 230/50-60
Max. current A 1.2
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Ball bearing; service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h; free flow
Signalling Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class I earthed
Protection degree EN60529 IP20
Operating temperature °C (°F) -25/+70 (-13/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 135x112x82
Weight (with packaging) kg 0.88(0.94)
Conformity CE – UL  cruus



IP-FH400 – 400W Heater 165 x 112 x 82 (mm)
Features Unit IP-FH400
Heating Capacity W 400
Power supply V/Hz 230/50-60
Max. current A 1.9
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow
Signalling Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class I earthed
Protection degree EN60529 IP20
Operating temperature °C (°F) -25/+70 (-13/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 165x112x82
Weight (with packaging) kg 0.97(1.04)
Conformity CE – UL  cruus



IP-FH500 – 500W Heater 165 x 112 x 82 (mm)
Features Unit IP-FH500
Heating Capacity W 500
Power supply V/Hz 230/50-60
Max. current A 2.4
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile anodized
Axial fan Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow
Signalling Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class I; earthed
Protection degree EN60529 IP20
Operating temperature °C (°F) -25/+70 (-13/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 165x112x82
Weight (with packaging) kg 0.97(1.04)
Conformity CE – UL  cruus



IP-FH750 – 750W Heater 225 x 112 x 82 (mm)
Features Unit IP-FH750
Heating Capacity W 750
Power supply V/Hz 230/50-60
Max. current A 3.6
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow
Signalling   Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class I; earthed
Protection degree EN60529 IP20
Operating temperature °C (°F) -25/+70 (-13/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 225x112x82
Weight (with packaging) kg 1.35(1.42)
Conformity CE – UL  cruus



Fan Assisted (Small Footprint) – TMX Range

Fan assisted, high-efficency heaters.

Electrical Enclosure Heater

IP-TMX150 – 150W Heater 88 x 66 x 97 (mm)

Features Unit IP-TMX150
Heating Capacity W 150
Power supply V/Hz 230/50-60
Max. current A 6.3
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow
Signalling   Green LED power ON
Electrical connections Spring terminals
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -40/+70 (-40/+158)
Storage temperature °C (°F) -40/+70 (-40/+158)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 88 x 66 x 97
Weight (with packaging) kg 0.35
Conformity CE – UL



IP-TMX250 – 500W Heater 88 x 66 x 97 (mm)



Features Unit IP-TMX250
Heating Capacity W 500
Power supply V/Hz 230/50-60
Max. current A 6.3
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Air flow rate 30 m³/h free flow
Signalling Green LED power ON
Electrical connections Spring terminals
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -40/+70 (-40/+158)
Storage temperature °C (°F) -40/+70 (-40/+158)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 88 x 66 x 97
Weight (with packaging) kg 0.35
Conformity CE – UL



IP-TMX300- 500W Heater 88 x 66 x 97 (mm)

Features Unit IP-TMX300
Heating Capacity W 750
Power supply V/Hz 115/50-60
Max. current A 6.3
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Air flow rate 30 m³/h free flow
Signalling   Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -40/+70 (-40/+158)
Storage temperature °C (°F) -40/+70 (-40/+158)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 88 x 66 x 97
Weight (with packaging) kg 0.35
Conformity CE – UL



IP-TMX400- 750W Heater 88 x 66 x 97 (mm)

Features Unit IP-TMX300
Heating Capacity W 750
Power supply V/Hz 115/50-60
Max. current A 6.3
Heating element type Resistor
Thermal protection Thermal cut out fuse in case of fan failure
Radiator Extruded aluminium profile; anodized
Axial fan Air flow rate 30 m³/h free flow
Signalling   Green LED power ON
Electrical connections 3 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IEC Class II
Protection degree EN60529 IP20
Operating temperature °C (°F) -25/+70 (-13/+158)
Storage temperature °C (°F) -45/+80 (-49/+176)
Mounting Clip for mounting on DIN rail 35 mm EN50022
Installation position Best performance with vertical installation
Dimensions HxWxD mm 88 x 66 x 97
Weight (with packaging) kg 0.35
Conformity CE – UL
