Air Conditioners for Electrical Cabinets
IP Enclosures offers a high-performance range of enclosure air conditioners specifically engineered to manage internal temperatures in electrical cabinets and data racks. Designed for reliability and energy efficiency, these units are available in IP54 for indoor use and IP55 for outdoor use, delivering effective protection against dust and water ingress. Air conditioning is essential when enclosure temperatures must remain below ambient conditions or when internal heat loads exceed natural dissipation capabilities.
Each unit uses a dual-air-circuit design to isolate internal airflow from the outside environment. Heated air inside the enclosure is circulated through the air conditioning unit, cooled, and returned, while a separate external air circuit exchanges ambient air without contaminating the internal space. This separation ensures that moisture, dust, and airborne contaminants are kept out, preserving the integrity of the enclosure contents. The evaporator fan runs continuously to ensure consistent air distribution and eliminate hotspots. A digital thermostat is factory set at 35 °C but can be adjusted between 20 °C and 45 °C to meet specific requirements. The refrigeration cycle automatically starts or stops depending on internal temperature conditions. Optional accessories include flow diverters to avoid direct airflow on active components and filters to protect internal air conditioner components from dust and dirt. All units are SAA approved for use in Australia and manufactured in Italy to meet strict quality standards. IP Enclosures’ air conditioners support the shift toward lower Global Warming Potential (GWP) refrigerants, aligning with environmental sustainability goals.
IP Enclosures’ air conditioners range from 350 W to 6 kW in cooling capacity. They are available in wall and roof mounted configurations, with selected models including high-level features such as alarm relays, door interlocks, RS485 communications, and integrated condensate management. Installation maintains the original IP rating of the enclosure, supporting safe, long-term performance for industrial and data-critical applications.
For sizing support or technical assistance, contact our enclosure specialists to calculate the required cooling output in watts based on your specific application needs.
IP Enclosures Air Conditioners are provided with a built-in digital thermostat providing the following functionality:
- Set temperature of compressor start
- Set temperature of compressor shutdown
- Set delay on/off of compressor in terms of temperature
- Set time of compressor to avoid intermittent on/off
- Set maximum value for overcoming maximum temperature in the cabinet, after which thermostat emits an alarm
- Set delay time of alarm switch
- Door interlock
- RS485 connection interface
Standards: AS/NZS 60335.2.40:2019, AS/NZS 60335.1:2020.
Approval Marks: SAA203165
| Size | IP54 INDOOR | Steel | Data Sheet | Drawing | Template | Drawing | Step File |
|---|---|---|---|---|---|---|
| Watts | SKU | .dwg | .stp | |||
| 350 | IP-ACIWM035.003 | .dwg | .stp | |||
| 850 | IP-ACIWM085.003 | .dwg | .stp | |||
| 1450 | IP-ACIWM145.003 | .dwg | .stp | |||
| 2000 | IP-ACIWM200.003 | .dwg | .stp | |||
| 3000 | IP-ACIWM300.433 | .dwg | .stp | |||
| 4000 | IP-ACIWM400.433 | .dwg | .stp |
| Size | IP54 INDOOR | Stainless Steel | Data Sheet | Drawing | Drawing | Step File |
|---|---|---|---|---|---|
| Watts | SKU | .dwg | .stp | ||
| 350 | IP-ACIWM035.0X | .dwg | .stp | ||
| 850 | IP-ACIWM085.0X | .dwg | .stp | ||
| 1450 | IP-ACIWM145.0X | .dwg | .stp | ||
| 2000 | IP-ACIWM200.0X | .dwg | .stp | ||
| 3000 | IP-ACIWM300.4330X | .dwg | .stp | ||
| 4000 | IP-ACIWM400.4330X | .dwg | .stp | ||
| 4000 | IP-ACIWM400.433 | .dwg | .stp |
| Size | IP55 OUTDOOR |Steel | Data Sheet | Drawing | Template | Drawing | Step File |
|---|---|---|---|---|---|---|
| Watts | SKU | .dwg | .stp | |||
| 350 | IP-ACOWM035.003 | .dwg | .stp | |||
| 850 | IP-ACOWM085.003 | .dwg | .stp | |||
| 145 | IP-ACOWM145.003 | .dwg | .stp | |||
| 2000 | IP-ACOWM200.003 | .dwg | .stp | |||
| 3000 | IP-ACOWM300.433 | .dwg | .stp | |||
| 4000 | IP-ACOWM400.433 | .dwg | .stp |
Indoor IP54 Wall-Mounted Air-Conditioner Details
Vertical-mount compact IP54 air conditioners are specifically designed for the cooling needs of indoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance. The corrosion resistant Stainless Steel (304) option for harsher environments is categorised by the ‘.0X’ product code.
350W
IP-ACIWM035.003 – 350W Indoor Wall Mounted Air Conditioner
IP-ACIWM035.0X- 350W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM035/IP-ACIWM035.0X | |
|---|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 | |
| Dimensions HxWxD | mm | 430x280x170 | |
| Cooling capacity EN814 A35A35 | W | 350/370 | |
| Cooling capacity EN814 A35A50 | W | 200/220 | |
| Air fow rate (free blow) | |||
| inside | m³/h | 350/390 | |
| outside | m³/h | 600/625 | |
| Max current | A | 1.8/1.9 | |
| Delayed fuse | A | 4 | |
| Absorbed electric power EN814 A35A35 | W | 260/270 | |
| Absorved electric power EN814 A35A50 | W | 280/300 | |
| Refrigerant (type/charge) | g | R134a/300g | |
| Maximum Pressure | kPA | 2400 | |
| Operating temperature (ambient) | °C | +20/+55 | |
| Operating temperature (enclosure) | °C | +20/+45 | |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat | |
| Compressor type | – | Rotative compressor | |
| Noise level | dB(A) | 60 | |
| Electrical connection | – | Three-pole connector | |
| Protection degree EN60529/1 enclosure side | – | IP54 | |
| Protection degree EN60529/1 ambient side | – | IP34 | |
| Weight (with packaging) | kg | 15(16) | |
| Colour | – | RAL 7035 | |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
850W
IP-ACIWM085.003 – 850W Indoor Wall Mounted Air Conditioner
IP-ACIWM085.0X- 850W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM085/IP-ACIWM085.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 635x305x210 |
| Cooling capacity EN814 A35A35 | W | 850/900 |
| Cooling capacity EN814 A35A50 | W | 625/650 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 600/625 |
| Max current | A | 2.65/2.75 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 450/470 |
| Absorbed electric power EN814 A35A50 | W | 530/560 |
| Refrigerant (type/charge) | g | R134a/390g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +20/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 62 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 23(24) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
1450W
IP-ACIWM145.003 – 1450W Indoor Wall Mounted Air Conditioner
IP-ACIWM145.0X- 1450W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM145/IP-ACIWM145.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 800x400x240 |
| Cooling capacity EN814 A35A35 | W | 1450/1500 |
| Cooling capacity EN814 A35A50 | W | 1150/1200 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 3.7/4.2 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 650/700 |
| Absorbed electric power EN814 A35A50 | W | 770/850 |
| Refrigerant (type/charge) | g | R134a/700g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +20/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 65 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 37(38) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
2000W
IP-ACIWM200.003 – 2000W Indoor Wall Mounted Air Conditioner
IP-ACIWM200.0X – 2000W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM200/IP-ACIWM200.OX |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 1000x400x240 |
| Cooling capacity EN814 A35A35 | W | 2000/2100 |
| Cooling capacity EN814 A35A50 | W | 1200/1250 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 6.6/6.9 |
| Delayed fuse | A | 10 |
| Absorbed electric power EN814 A35A35 | W | 1060/1100 |
| Absorbed electric power EN814 A35A50 | W | 1240/1300 |
| Refrigerant (type/charge) | g | R134a/600g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +20/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
3000W
IP-ACIWM300.433 – 3000W Indoor Wall Mounted Air Conditioner
IP-ACIWM300.4330X – 3000W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM300/IP-ACIWM300.0X |
|---|---|---|
| Power supply | V/Hz | 400V/3ph/50-460V3ph/60 |
| Dimensions HxWxD | mm | 1500x400x255 |
| Cooling capacity EN814 A35A35 | W | 2800/2950 |
| Cooling capacity EN814 A35A50 | W | 2150/2330 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 2.2/2.6 |
| Delayed fuse | A | 16 |
| Absorbed electric power EN814 A35A35 | W | 2090/2200 |
| Absorbed electric power EN814 A35A50 | W | 2400/2550 |
| Refrigerant (type/charge) | g | R134a/600g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +20/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
4000W
IP-ACIWM400.433 – 4000W Indoor Wall Mounted Air Conditioner
IP-ACIWM400.4330X – 4000W Stainless Steel Indoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACIWM400/IP-ACIWM400.0X |
|---|---|---|
| Power supply | V/Hz | 400V/3ph/50 – 460V/3ph/60 |
| Dimensions HxWxD | mm | 1500x400x255 |
| Cooling capacity EN814 A35A35 | W | 3800/3980 |
| Cooling capacity EN814 A35A50 | W | 2800/3160 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 2.7/3.0 |
| Delayed fuse | A | 16 |
| Absorbed electric power EN814 A35A35 | W | 2200/2320 |
| Absorbed electric power EN814 A35A50 | W | 2600/2750 |
| Refrigerant (type/charge) | g | R134a/600g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +20/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
Outdoor IP55 Wall-Mounted Air-Conditioner Details
Vertical-mount compact outdoor IP55 air conditioners are specifically designed for the cooling needs of outdoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance. Outdoor models include a special cover designed to protect internal components, a condenser fan controller and pressure controller for the compressor. The outdoor range has been designed to provide protection in the harshest outdoor conditions. The corrosion resistant Stainless Steel (304) option is categorised by the ‘.OX’ product code.
350W
IP-ACOWM035.003 – 350W Outdoor Wall Mounted Air Conditioner
IP-ACOWM035.0X – 350W Stainless Steel Outdoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM035/IP-ACOWM035.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 430x280x170 |
| Cooling capacity EN814 A35A35 | W | 350/370 |
| Cooling capacity EN814 A35A50 | W | 200/220 |
| Air fow rate (free blow) | ||
| inside | m³/h | 350/390 |
| outside | m³/h | 600/625 |
| Max current | A | 1.8/1.9 |
| Delayed fuse | A | 4 |
| Absorbed electric power EN814 A35A35 | W | 260/270 |
| Absorved electric power EN814 A35A50 | W | 280/300 |
| Refrigerant (type/charge) | g | R134a/300g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +5/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 60 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP55 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | kg | 15(16) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
850W
IP-ACOWM085.003 – 850W Outdoor Wall Mounted Air Conditioner
IP-ACOWM085.0X- 850W Stainless Steel Outdoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM085/IP-ACOWM085.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 635x305x210 |
| Cooling capacity EN814 A35A35 | W | 850/900 |
| Cooling capacity EN814 A35A50 | W | 625/650 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 600/625 |
| Max current | A | 2.65/2.75 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 450/470 |
| Absorbed electric power EN814 A35A50 | W | 530/560 |
| Refrigerant (type/charge) | g | R134a/390g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +5/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 62 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP55 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 23(24) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
1450W
IP-ACOWM145.003 – 1450W Outdoor Wall Mounted Air Conditioner
IP-ACOWM145.0X- 1450W Stainless Steel Outdoor Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM145/IP-ACOWM145.0X | |
|---|---|---|---|
| Power supply | V/Hz 230V/1ph/50-60 | ||
| Dimensions HxWxD | mm | 800x400x240 | |
| Cooling capacity EN814 A35A35 | W | 1450/1500 | |
| Cooling capacity EN814 A35A50 | W | 1150/1200 | |
| Air flow rate (free blow) | |||
| inside | m3/h | 600/625 | |
| outside | m3/h | 880/950 | |
| Max current | A | 3.7/4.2 | |
| Delayed fuse | A | 6 | |
| Absorbed electric power EN814 A35A35 | W | 650/700 | |
| Absorbed electric power EN814 A35A50 | W | 770/850 | |
| Refrigerant (type/charge) | g | R134a/700g | |
| Maximum Pressure | kPA | 2400 | |
| Operating temperature (ambient) | °C | +5/+55 | |
| Operating temperature (enclosure) | °C | +20/+45 | |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat | |
| Compressor type | – | Rotative compressor | |
| Noise level | dB(A) | 65 | |
| Electrical connection | – | Three-pole connector | |
| Protection degree EN60529/1 enclosure side | – | IP55 | |
| Protection degree EN60529/1 ambient side | – | IP34 | |
| Weight (with packaging) | Kg | 37(38) | |
| Colour | – | RAL 7035 | |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
2000W
IP-ACOWM200.003 – 2000W Outdoor Wall Mounted Air Conditioner
IP-ACOWM200.0X- 2000W Outdoor Stainless Steel Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM200/IP-ACOWM200.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 1000x400x240 |
| Cooling capacity EN814 A35A35 | W | 2000/2100 |
| Cooling capacity EN814 A35A50 | W | 1200/1250 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 6.6/6.9 |
| Delayed fuse | A | 10 |
| Absorbed electric power EN814 A35A35 | W | 1060/1100 |
| Absorbed electric power EN814 A35A50 | W | 1240/1300 |
| Refrigerant (type/charge) | g | R134a/450g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +5/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP55 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
3000W
IP-ACOWM300.433 – 3000W Outdoor Wall Mounted Air Conditioner
IP-ACOWM300.433.0X- 3000W Outdoor Stainless Steel Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM300/IP-ACOWM300.0X |
|---|---|---|
| Power supply | V/Hz | 400V/3ph/50-460X/3ph/60 |
| Dimensions HxWxD | mm | 1500x400x255 |
| Cooling capacity EN814 A35A35 | W | 2800/2950 |
| Cooling capacity EN814 A35A50 | W | 2150/2330 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 2.2/2.6 |
| Delayed fuse | A | 16 |
| Absorbed electric power EN814 A35A35 | W | 2090/2200 |
| Absorbed electric power EN814 A35A50 | W | 2400/2550 |
| Refrigerant (type/charge) | g | R134a/450g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +5/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP55 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
4000W
IP-ACOWM400.433 – 4000W Outdoor Wall Mounted Air Conditioner
IP-ACOWM400.433.0X- 4000W Outdoor Stainless Steel Wall Mounted Air Conditioner
| Features | Unit | IP-ACOWM400/IP-ACOWM400.0X |
|---|---|---|
| Power supply | V/Hz | 400V/3ph/50-460X/3ph/60 |
| Dimensions HxWxD | mm | 1500x400x255 |
| Cooling capacity EN814 A35A35 | W | 3800/3890 |
| Cooling capacity EN814 A35A50 | W | 2800/3160 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 2.7/3.0 |
| Delayed fuse | A | 16 |
| Absorbed electric power EN814 A35A35 | W | 2200/2320 |
| Absorbed electric power EN814 A35A50 | W | 2600/2750 |
| Refrigerant (type/charge) | g | R134a/450g |
| Maximum Pressure | kPA | 2400 |
| Operating temperature (ambient) | °C | +5/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure side | – | IP55 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |

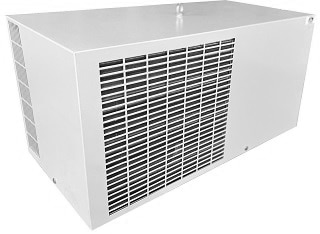

Indoor Roof-Mounted Air-Conditioner Details
Roof-mount compact air conditioners designed for the cooling needs of indoor electrical cabinets. They are optimised for roof mounting and have been designed for high efficiency and low maintenance. The corrosion resistant Stainless Steel (304) option for harsher environments is categorised by the ‘.OX’ product code.
500W
IP-ACIRM050 – 500W Indoor Roof Mounted Air Conditioner
IP-ACIRM050.0X- 500W Stainless Steel Indoor Roof Mounted Air Conditioner
| Features | Unit | IP-ACIRM050/IP-ACIRM050.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 250x500x350 |
| Cooling capacity EN814 A35A35 | W | 500/520 |
| Cooling capacity EN814 A35A50 | W | 360/380 |
| Max running current | A | 2.0/2.2 |
| Inrush current | A | 6.9/7.0 |
| Absorbed electric power EN814 A35A35 | W | 360/420 |
| Operating temperature (ambient) | °C | +20/+55 (50Hz)-+20/+50 (60Hz) |
| Noise level | dB(A) | 67 |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | kg | 22 |
| Colour | – | RAL 7035 |
| Conformity | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
1000W
IP-ACIRM100 – 1000W Indoor Roof Mounted Air Conditioner
IP-ACIRM100.0X- 1000W Stainless Steel Indoor Roof Mounted Air Conditioner
| Features | Unit | IP-ACIRM100/IP-ACIRM100.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 300x600x400 |
| Cooling capacity EN814 A35A35 | W | 1000/1060 |
| Cooling capacity EN814 A35A50 | W | 760/790 |
| Max running current | A | 2.8/3.4 |
| Inrush current | A | 11.5/12.6 |
| Absorbed electric power EN814 A35A35 | W | 580/670 |
| Operating temperature (ambient) | °C | +20/+55 (50Hz)-+20/+50 (60Hz) |
| Noise level | dB(A) | 70 |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | kg | 37 |
| Colour | – | RAL 7035 |
| Conformity | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
1500W
IP-ACIRM150 – 1500W Indoor Roof Mounted Air Conditioner
IP-ACIRM150.0X- 1500W Indoor Stainless Steel Roof Mounted Air Conditioner
| Features | Unit | IP-ACIRM150/IP-ACIRM150.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 300x600x400 |
| Cooling capacity EN814 A35A35 | W | 1460/1520 |
| Cooling capacity EN814 A35A50 | W | 1090/1130 |
| Max running current | A | 4.0/4.8 |
| Inrush current | A | 16.3/13.5 |
| Absorbed electric power EN814 A35A35 | W | 790/930 |
| Operating temperature (ambient) | °C | +20/+55 (50Hz)-+20/+50 (60Hz) |
| Noise level | dB(A) | 70 |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | kg | 41 |
| Colour | – | RAL 7035 |
| Conformity | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
2000W
IP-ACIRM200 – 2000W Indoor Roof Mounted Air Conditioner
IP-ACIRM200.0X- 2000W Indoor Stainless Steel Roof Mounted Air Conditioner
| Features | Unit | IP-ACIRM200/IP-ACIRM200.0X |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 400x800x400 |
| Cooling capacity EN814 A35A35 | W | 2000/2110 |
| Cooling capacity EN814 A35A50 | W | 1500/1570 |
| Max running current | A | 5.1/6.2 |
| Inrush current | A | 23.6/24.1 |
| Absorbed electric power EN814 A35A35 | W | 1040/1250 |
| Operating temperature (ambient) | °C | +20/+55 (50Hz)-+20/+50 (60Hz) |
| Noise level | dB(A) | 65 |
| Protection degree EN60529/1 enclosure side | – | IP54 |
| Protection degree EN60529/1 ambient side | – | IP34 |
| Weight (with packaging) | kg | 54 |
| Colour | – | RAL 7035 |
| Conformity | – | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
Select the Right Air Conditioners
Use the Electrical Enclosure & Cabinet Thermal Calculator
