IP69K Pushbutton Enclosures

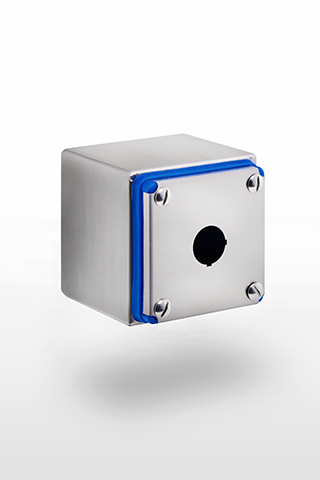

The HPB series of IP69K pushbutton enclosures is engineered for environments requiring stringent cleanliness standards, such as pharmaceutical, processing, and food-related sectors. Constructed from 1.0 mm stainless steel, these enclosures feature a crevice-free, self-draining monoblock body and cover design to eliminate contamination points and facilitate hygienic cleaning.
Designed for rugged, contamination-sensitive applications, the HPB enclosures offer certified Ingress Protection ratings of IP66, IK08, and IP69K. They comply with major standards including IEC/EN 60529, ISO 20653, UL 508A, RoHS, CE, and UKCA. The cover includes a FDA-compliant blue silicone gasket that allows for reliable sealing in demanding washdown conditions.
Available in 1 to 4 hole configurations (standard Ø 22.5 mm), the HPB enclosures measure 90 × 90 × 90 mm up to 280 × 90 × 90 mm with a usable depth of 75 mm. With a polished 0.2 µm Ra surface finish, these units combine ease of sanitation with robust IP69K performance, making the HPB series ideal for control-button installations in the most hygiene-critical environments.
Stainless Steel IP69K Pushbutton Enclosures
IP69K hygienic pushbutton enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Features & Specifications
Protection: IP66 IK08, IP69K, Nema Type 1, 12, 4, 4x.
Standard: EN/AS60529, ISO20653, UL508A, RoHS, CE, UKCA
Material:
– Enclosure Body: 1.0mm Grade 304 Stainless Steel
– Enclosure Door: 1.0mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant
Enclosure Body:
The body is fabricated using 1.0mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
Cover:
The cover is fabricated using 1.0mm Grade 304 Stainless Steel and includes a clip-in silicone seal.
Holes:
Ø 22.5
Enclosure Seal:
Blue silicone seal, FDA compliant for food production areas.
Surface Finish:
0.2 microns
Accessories:
Hygienic Wall Mounting Brackets. SKU: IP-HWMB (Set of 2)
