Kiosks (Montrose-style)

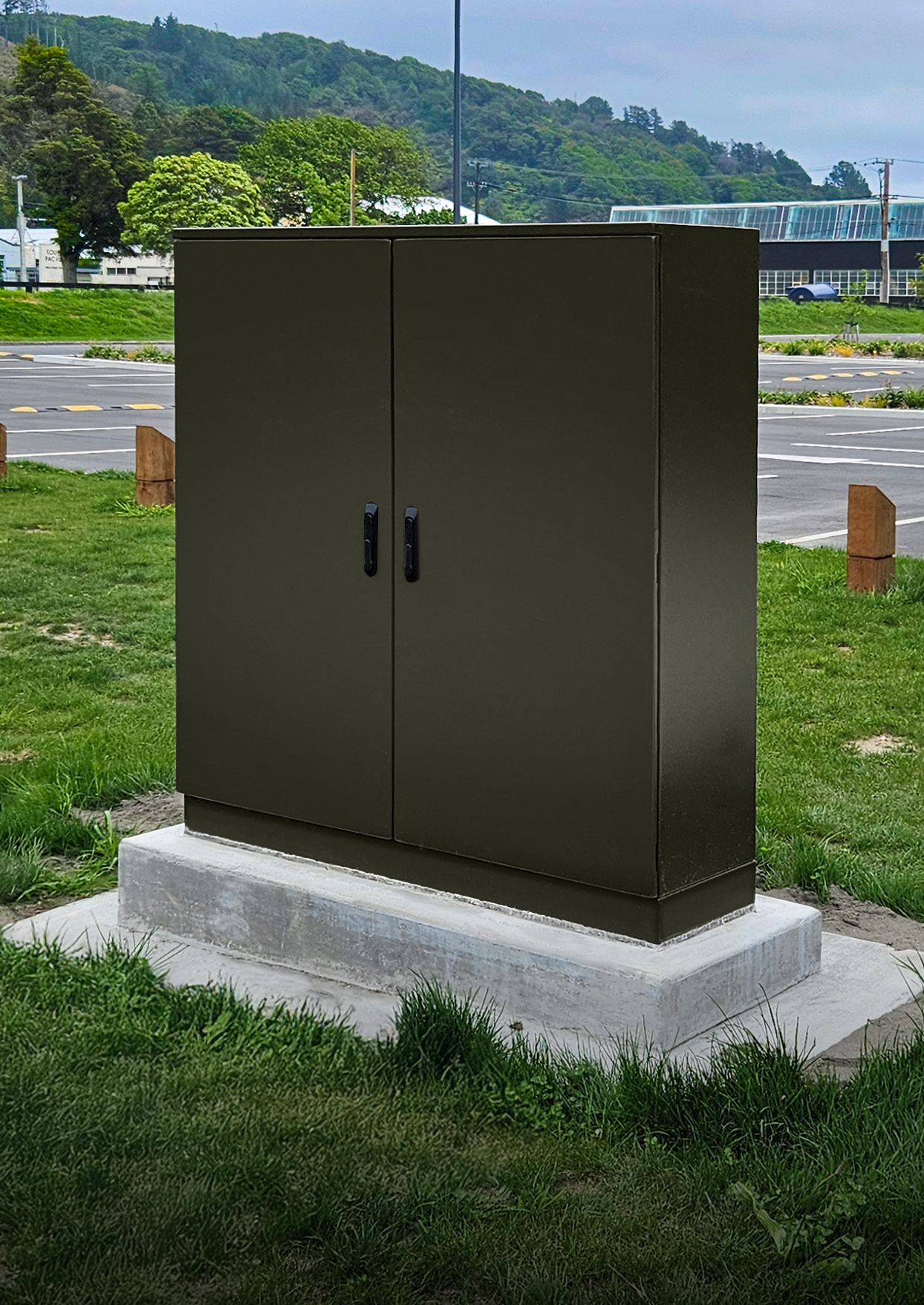

IP Enclosures’ Kiosks (Montrose-style) deliver robust outdoor protection for electrical and communications equipment in high‑exposure infrastructure environments. Designed for applications such as utility cabinets, transport communications, and remote monitoring sites, these kiosks combine performance with long-term reliability. They are rated to IP66 for dust and water ingress protection and IK10 for mechanical impact resistance, ensuring critical components remain safe in the harshest conditions

Constructed from 1.5 mm galvanised steel or marine-grade aluminium, each kiosk features a fully welded monoblock body with integrated plinth and overhanging rain hood. The front door includes a concealed hinge and opens to 110°, supported by a heavy-duty door stay. Every unit is compliant with IEC/EN 62208, IEC/EN 60529, CE, RoHS, and UKCA standards.

Additional features include fan/filter cut-outs and hinged vent hoods for optional thermal management, pre-fitted nutserts for accessories, and high quality powder-coating applied prior to any aperture formation, ensuring corrosion protection for ventilated configurations. IP Enclosures backs this field enclosure range with a 5-year warranty, affirming its commitment to long-term performance and peace of mind for end users.

Features & Specifications

Protection: IP66 IK10 (NEMA 4)
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, RoHS, CE, UKCA

Material:

– Body: 1.5mm Grade 316/316L stainless steel or 2.5mm marine grade aluminium
– Door: 1.5mm Grade 316/316L stainless steel or 2.5mm marine grade aluminium
– Gland Plate: 1.5mm steel sheet or 2.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is fabricated from 1.5mm galvanised steel or marine grade aluminium. Flat face sealing surfaces enhance seal longevity, and integral device plate mounts and M6 earth studs are included. Designed for outdoor use, the base is fully integrated for secure floor mounting and additional structural strength.

Encosure Door:

The surface-mounted door is built from 1.5mm galvanised steel or aluminium, with concealed removable hinges and captive pins for service access. Doors open to 110°, and include integral cable management rail studs and an M6 earth stud.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Door:

3-point locking system with a padlockable swing handle for enhanced security. A full range of locking options is available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners.

Surface Treatment:

UL approved AkzoNobel epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate 0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Warranty:

5-year manufacturer’s warranty from the date of delivery.
