IP69K Hygienic Electrical Enclosures
The IP Enclosures H range of IP69K hygienic electrical enclosures are designed for applications within the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Stainless Steel IP69K Hygienic Electrical Enclosures
IP69K hygienic electrical enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Features & Specifications
Protection: Complies with IP66 IK07, IP69K.
Standard: DGUV EN1672-2, EN62208, EN/AS60529, ISO20653, UL508A, EHEDG, RoHS
– Enclosure Body: 1.5mm Grade 304 Stainless Steel
– Enclosure Door: 1.5mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant

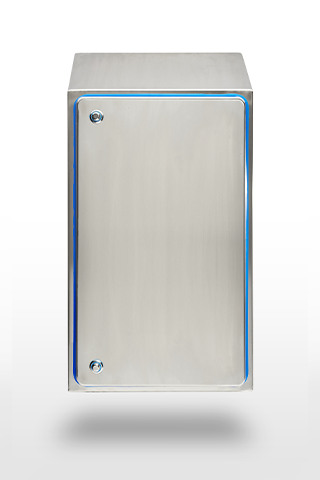

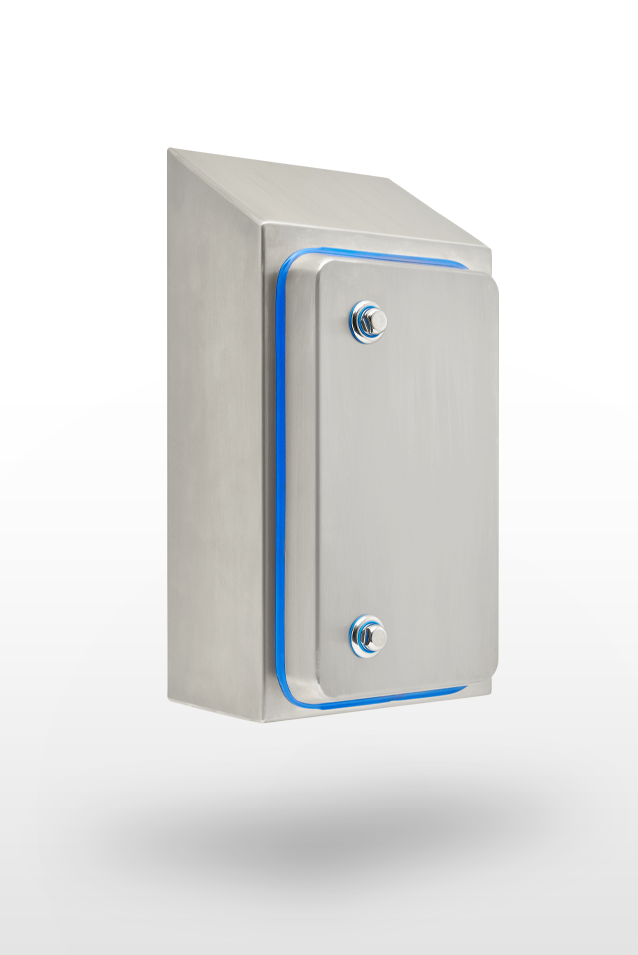

The robust monoblock body with 30° sloping roof is fabricated using 1.5mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
The door is fabricated using 1.5mm Grade 304 Stainless Steel and includes specially cast internal hinges. The door is designed for a 115° opening with hinges on the right hand side.
Blue silicone seal, FDA compliant for food production areas.

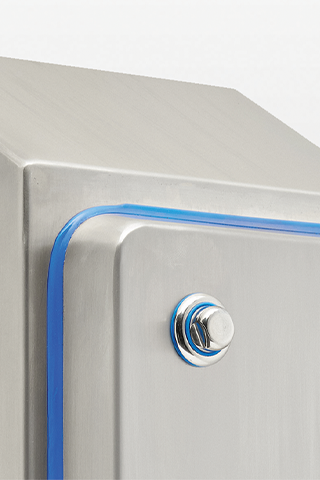

IP69K Stainless Steel Hygiene lock with seal. Dirt resistant and easy to clean.
Device Mounting Plate:
Fabricated using galvanised steel sheet. Supplied fitted.
Hygienic Spacer Bracket Kit. SKU: IP-HSB-KIT (Set of 4)
IP69K Hygienic Electrical Enclosure Sizes
|Part Number||Size||Overall height||Device Plate||Download||Download||Download|
|SKU||H x W x D (mm)||H2 (mm)||H x W (mm)||Data Sheet||Drawing||*.dwg|
|IP-H302015||300 x 200 x 150||388||245 x 145||.dwg|
|IP-H453821||450 x 380 x 210||570||395 x 325||.dwg|
|IP-H453830||450 x 380 x 300||622||395 x 325||.dwg|
|IP-H603821||600 x 380 x 210||720||545 x 325||.dwg|
|IP-H605021||600 x 500 x 210||720||545 x 445||.dwg|
|IP-H456030||450 x 600 x 300||622||395 x 545||.dwg|
|IP-H606021||600 x 600 x 210||720||545 x 545||.dwg|
|IP-H508030||500 x 800 x 300||672||445 x 745||.dwg|
|IP-H808030||800 x 800 x 300||972||745 x 745||.dwg|
|IP-H1008030||1000 x 800 x 300||1172||945 x 745||.dwg|
|IP-H1208030||1200 x 800 x 300||1372||1145 x 745||.dwg|
|IP-H1806041*||1800 x 602 x 410||2023||1715 x 489||.dwg|
|IP-H1808051*||1800 x 802 x 510||2082||1715 x 689||.dwg|

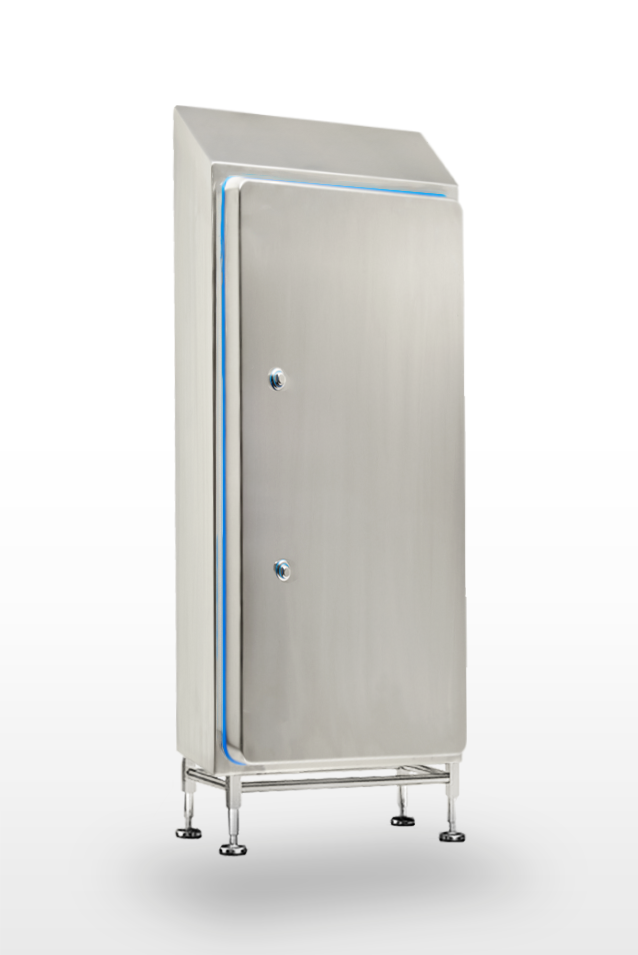

Note: Cabinets marked with an asterisk “*” are provided with a base with adjustable feet.
