Stainless steel electrical enclosures are designed to house a variety of switch and control equipment and are suitable for extreme duty applications. This range of grade 316 stainless steel electrical enclosures complies to IEC62208 and IEC/EN/AS60529 up to IP66 IK10 and NEMA 4x certified by an independent accredited test laboratory and are suitable for up to 1000 V AC at frequencies not exceeding 1000 Hz or 1500 V DC. The IP Enclosures range of stainless steel electrical enclosures are designed in Australia and precision manufactured to the highest standards using world-class international manufacturing facilities in Europe. A full range of sizes are available. Select the size you require and download the full range of electrical enclosure data sheets and drawings. Complete the quote request form and one of our team will contact you to provide a price.

IP66 Stainless Steel Electrical Enclosures

The SS1 range of stainless steel electrical enclosures are rated for protection up to IP66. This range is wall-mounted, grade 316 stainless steel, single door construction suitable for extreme duty applications.

Features & Specifications of SS1 Range of Stainless Steel Enclosures

Protection: Complies with IP66 IK10, NEMA 4x (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.5mm Grade 316/316L Stainless Steel
– Door: 1.5mm Grade 316/316L Stainless Steel
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Enclosure Body:

The robust monoblock body is 1.5mm Grade 316/316L Stainless Steel. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included.

Enclosure Door:

The surface mounted door is 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Enclosure Lock:

A full range of locking solutions are available upon request. Standard locks are as follows:
– 8mm square drive quarter turn lock with key.

Device Mounting Plate:

The device mounting plate is galvanised steel sheet. It is pressed to provide strength and is pre-fitted into the enclosure.

Incorporates many advanced features as standard inclusions

  • Fabricated using grade 316 stainless steel
  • Incorporates flat sealing face to improve seal life
  • Includes door cable rails
  • Includes ‘nutsert rivnuts’ for mounting brackets and accessories to retain IP rating
  • Includes mounting points for accessories including inner door escutcheons, rain hoods etc.

Quick Quote

2 + 12 =

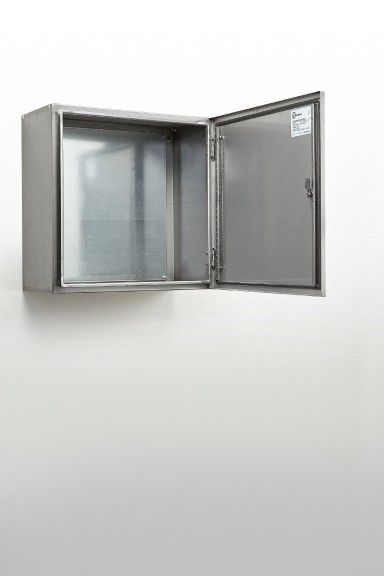

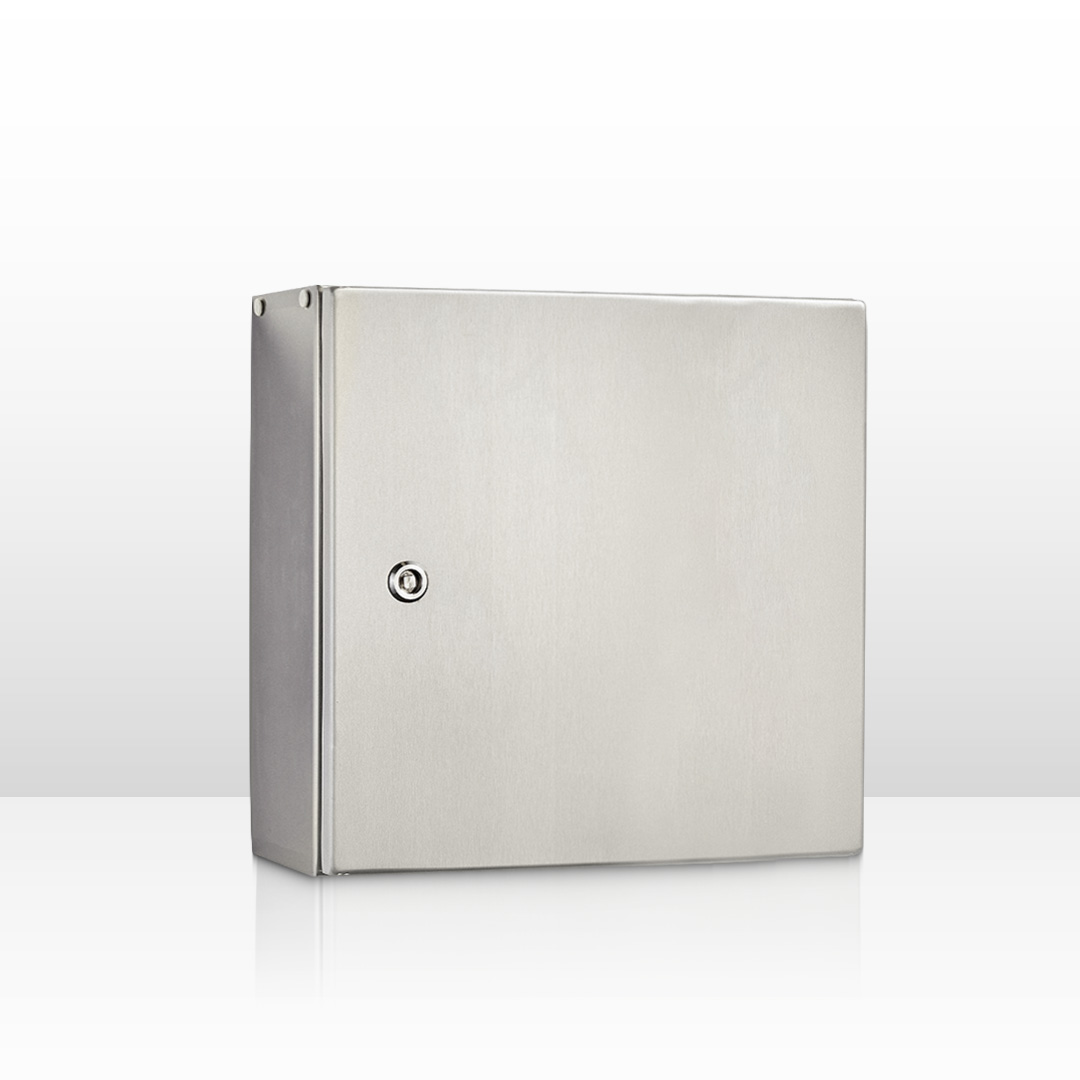

Stainless Steel Electrical Enclosure

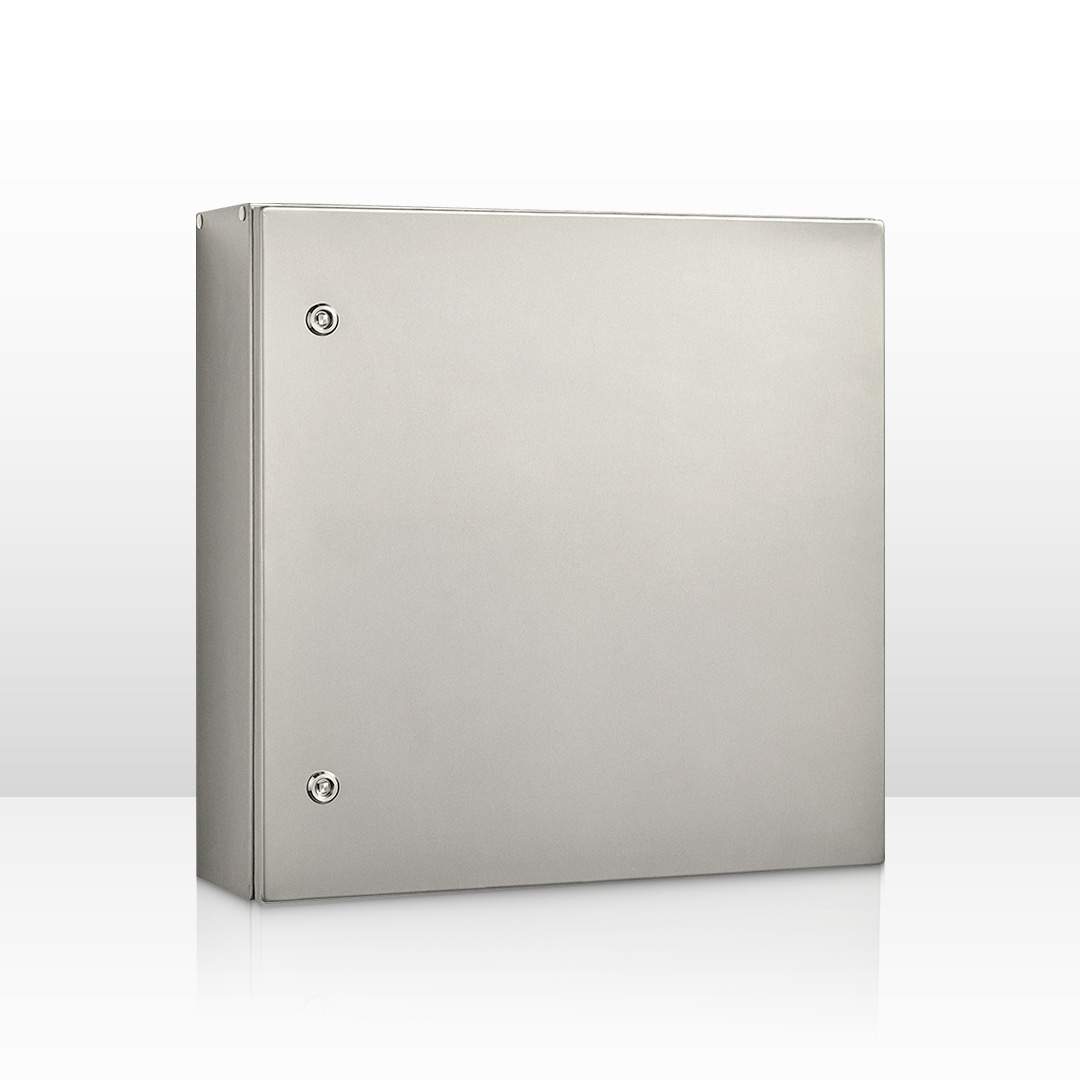

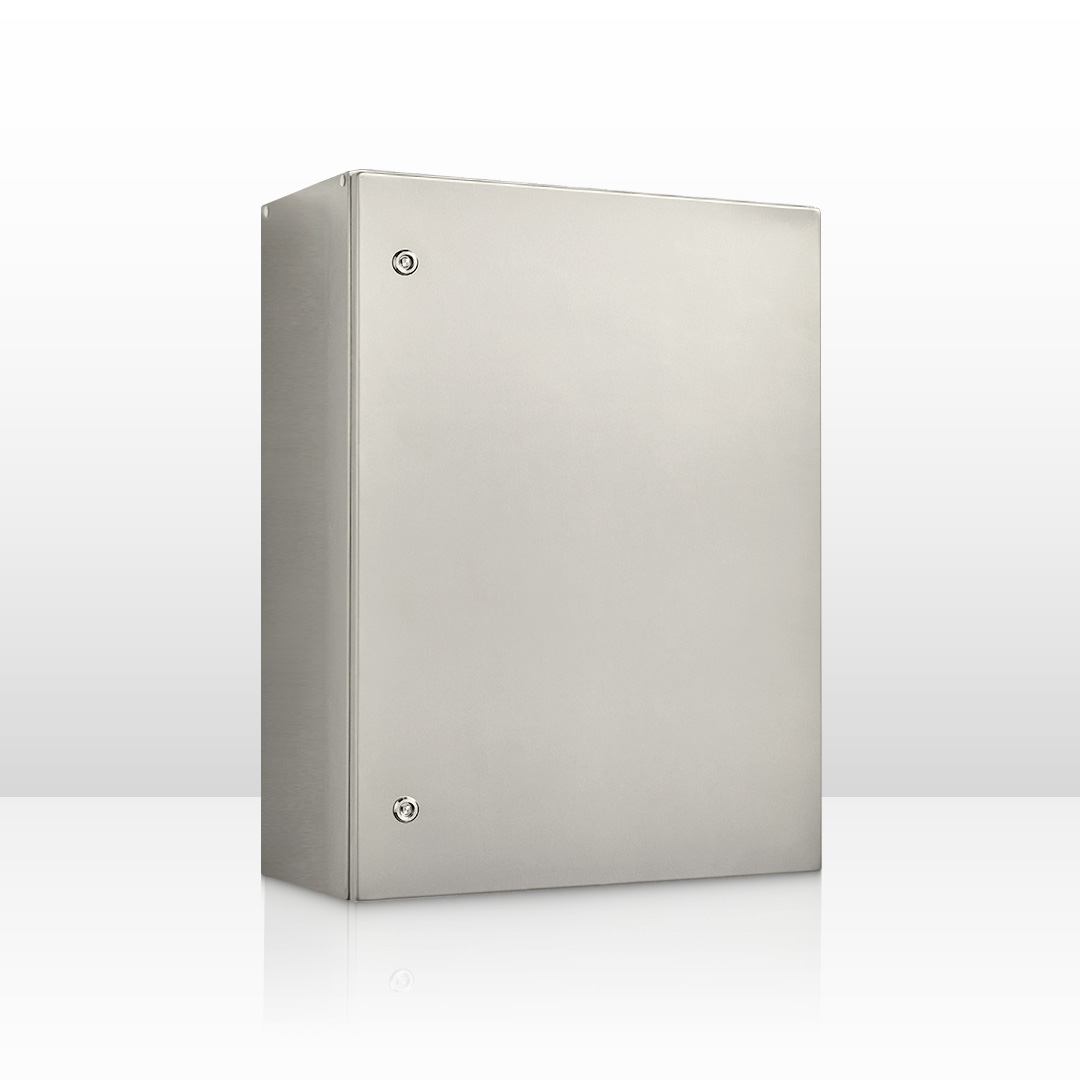

IP66 Stainless Steel Electrical Enclosure

IP66 Stainless Steel Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-SS302015300 x 200 x 1501PDFPDF.dwgIP-SSID3020IP-SSRH2015
IP-SS303015300 x 300 x 1501PDFPDF.dwgIP-SSID3030IP-SSRH3015
IP-SS303020300 x 300 x 2001PDFPDF.dwgIP-SSID3030IP-SSRH3020
IP-SS403015400 x 300 x 1501PDFPDF.dwgIP-SSID4030IP-SSRH3015
IP-SS403020400 x 300 x 2001PDFPDF.dwgIP-SSID4030IP-SSRH3020
IP-SS404020400 x 400 x 2001PDFPDF.dwgIP-SSID4040IP-SSRH4020
IP-SS504020500 x 400 x 2001PDFPDF.dwgIP-SSID5040IP-SSRH4020
IP-SS504025500 x 400 x 2501PDFPDF.dwgIP-SSID5040IP-SSRH4025
IP-SS505020500 x 500 x 2001PDFPDF.dwgIP-SSID5050IP-SSRH5020
IP-SS505025500 x 500 x 2501PDFPDF.dwgIP-SSID5050IP-SSRH5025
IP-SS604020600 x 400 x 2002PDFPDF.dwgIP-SSID6040IP-SSRH4020
IP-SS604025600 x 400 x 2502PDFPDF.dwgIP-SSID6040IP-SSRH4025
IP-SS606020600 x 600 x 2002PDFPDF.dwgIP-SSID6060IP-SSRH6020
IP-SS606030600 x 600 x 3002PDFPDF.dwgIP-SSID6060IP-SSRH6030
IP-SS606040600 x 600 x 4002PDFPDF.dwgIP-SSID6060IP-SSRH6040
IP-SS705025700 x 500 x 2502PDFPDF.dwgIP-SSID7050IP-SSRH5025
IP-SS804030800 x 400 x 3002PDFPDF.dwgIP-SSID8040IP-SSRH4030
IP-SS806025800 x 600 x 2502PDFPDF.dwgIP-SSID8060IP-SSRH6025
IP-SS806030800 x 600 x 3002PDFPDF.dwgIP-SSID8060IP-SSRH6030
IP-SS808030800 x 800 x 3002PDFPDF.dwgIP-SSID8080IP-SSRH8030
IP-SS10060301000 x 600 x 3002PDFPDF.dwgIP-SSID10060IP-SSRH6030
IP-SS10080301000 x 800 x 3002PDFPDF.dwgIP-SSID10080IP-SSRH8030
IP-SS10080401000 x 800 x 4002PDFPDF.dwgIP-SSID10080IP-SSRH8040
IP-SS12080301200 x 800 x 3002PDFPDF.dwgIP-SSID12080IP-SSRH8030

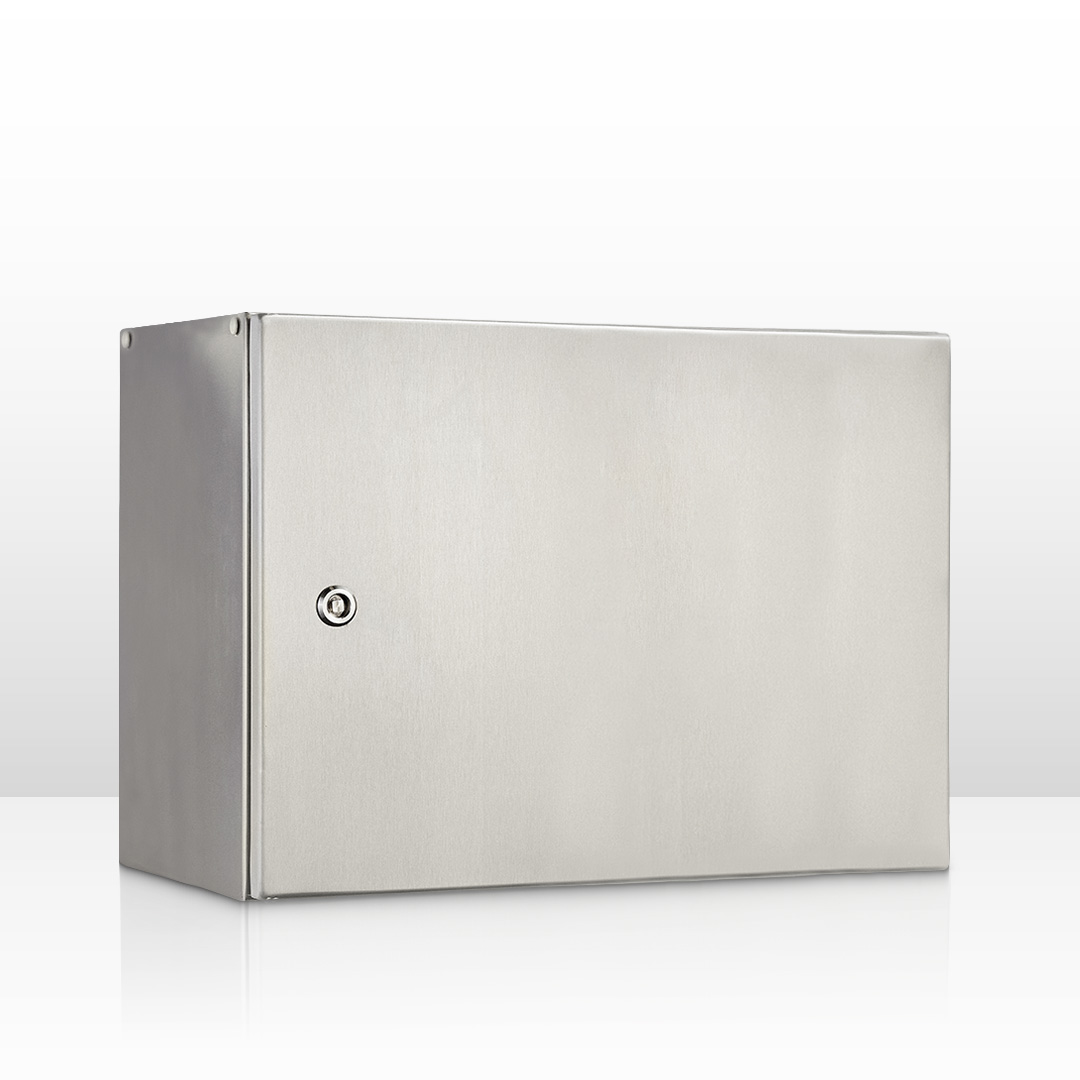

IP66 316ss Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-SSL304015300 x 400 x 1501PDFPDF.dwgIP-SSID3040IP-SSRH4015
IP-SSL304020300 x 400 x 2001PDFPDF.dwgIP-SSID3040IP-SSRH4020
IP-SSL406020400 x 600 x 2001PDFPDF.dwgIP-SSID4060IP-SSRH6020
IP-SSL406030400 x 600 x 3001PDFPDF.dwgIP-SSID4060IP-SSRH6030
IP-SSL608030600 x 800 x 3002PDFPDF.dwgIP-SSID6080IP-SSRH8030

IP55 Stainless Steel Electrical Enclosures

The SS2 range of stainless steel electrical enclosures are rated for protection up to IP55. This range is wall-mounted, grade 316 stainless steel, double door construction suitable for extreme duty applications.

Features & Specifications of SS2 Range of Stainless Steel Enclosures

Protection: Complies with IP55 IK10, NEMA 4x (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.5mm Grade 316/316L Stainless Steel
– Door: 1.5mm Grade 316/316L Stainless Steel
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Enclosure Body:

The robust monoblock body is 1.5mm Grade 316/316L Stainless Steel. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included.

Enclosure Double Doors:

The surface mounted doors are 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. Doors are designed for a 110° opening. Each door contains integral cable management rail studs and M6 earth studs. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provide excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

A full range of locking solutions are available upon request. Standard locks are as follows:
– 3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

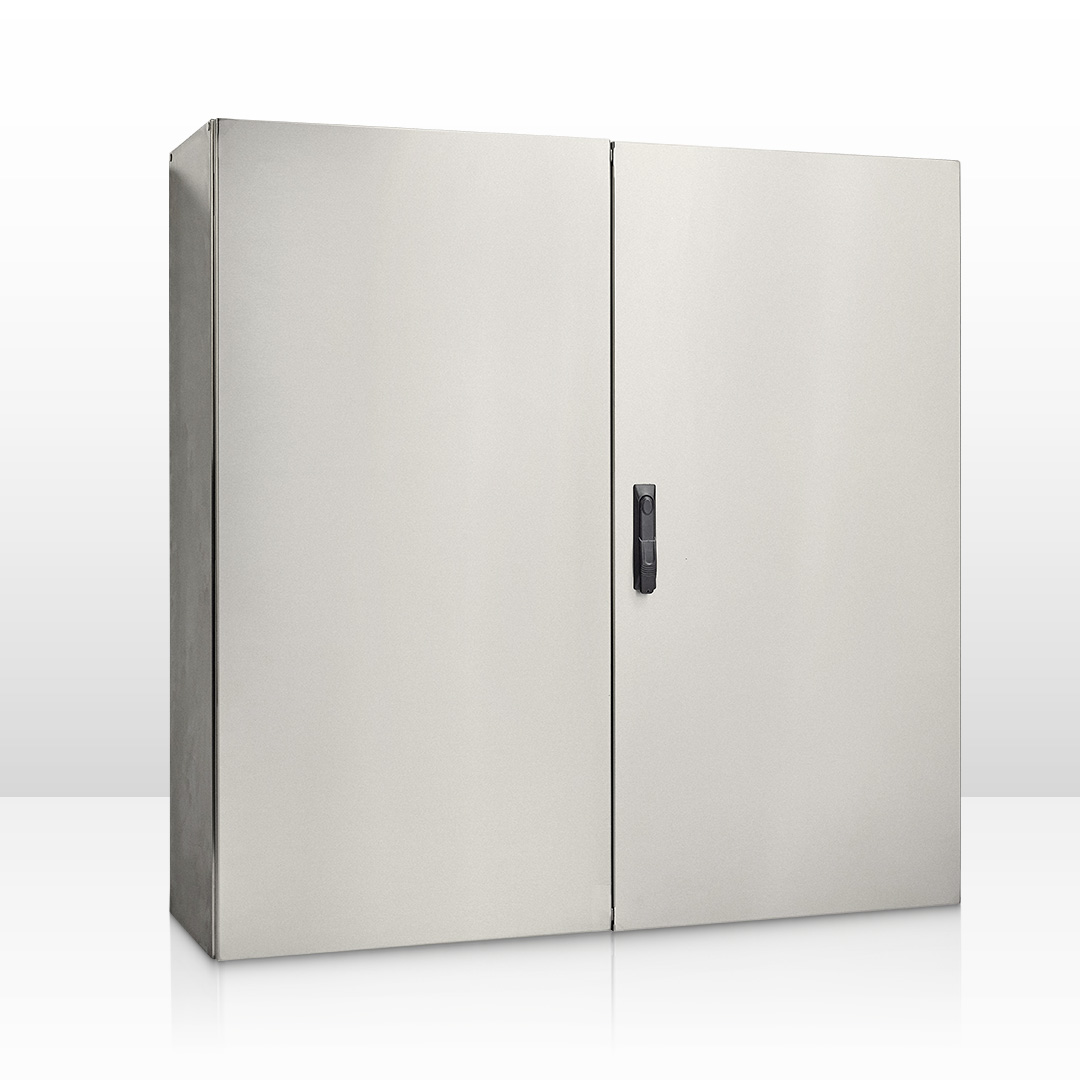

Large Stainless Steel Enclosure

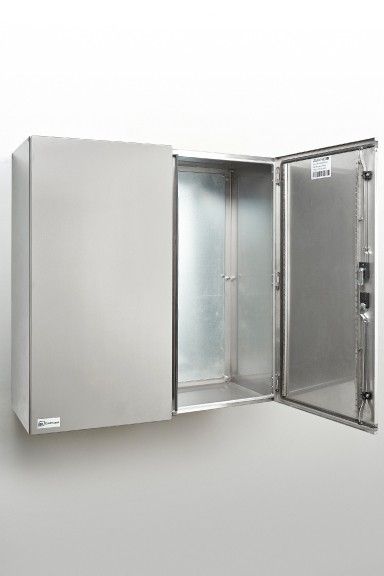

Large Stainless Steel Enclosure Open

IP55 Stainless Steel Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-SS100100301000 x 1000 x 3003-PointPDFPDF.dwgIP-SSID100100IP-SSRH10030
IP-SS100100401000 x 1000 x 4003-PointPDFPDF.dwgIP-SSID100100IP-SSRH10040
IP-SS120100301200 x 1000 x 3003-PointPDFPDF.dwgIP-SSID120100IP-SSRH10030
IP-SS120100401200 x 1000 x 4003-PointPDFPDF.dwgIP-SSID120100IP-SSRH10040
IP-SS120120301200 x 1200 x 3003-PointPDFPDF.dwgIP-SSID120120IP-SSRH12030
IP-SS120120401200 x 1200 x 4003-PointPDFPDF.dwgIP-SSID120120IP-SSRH12040

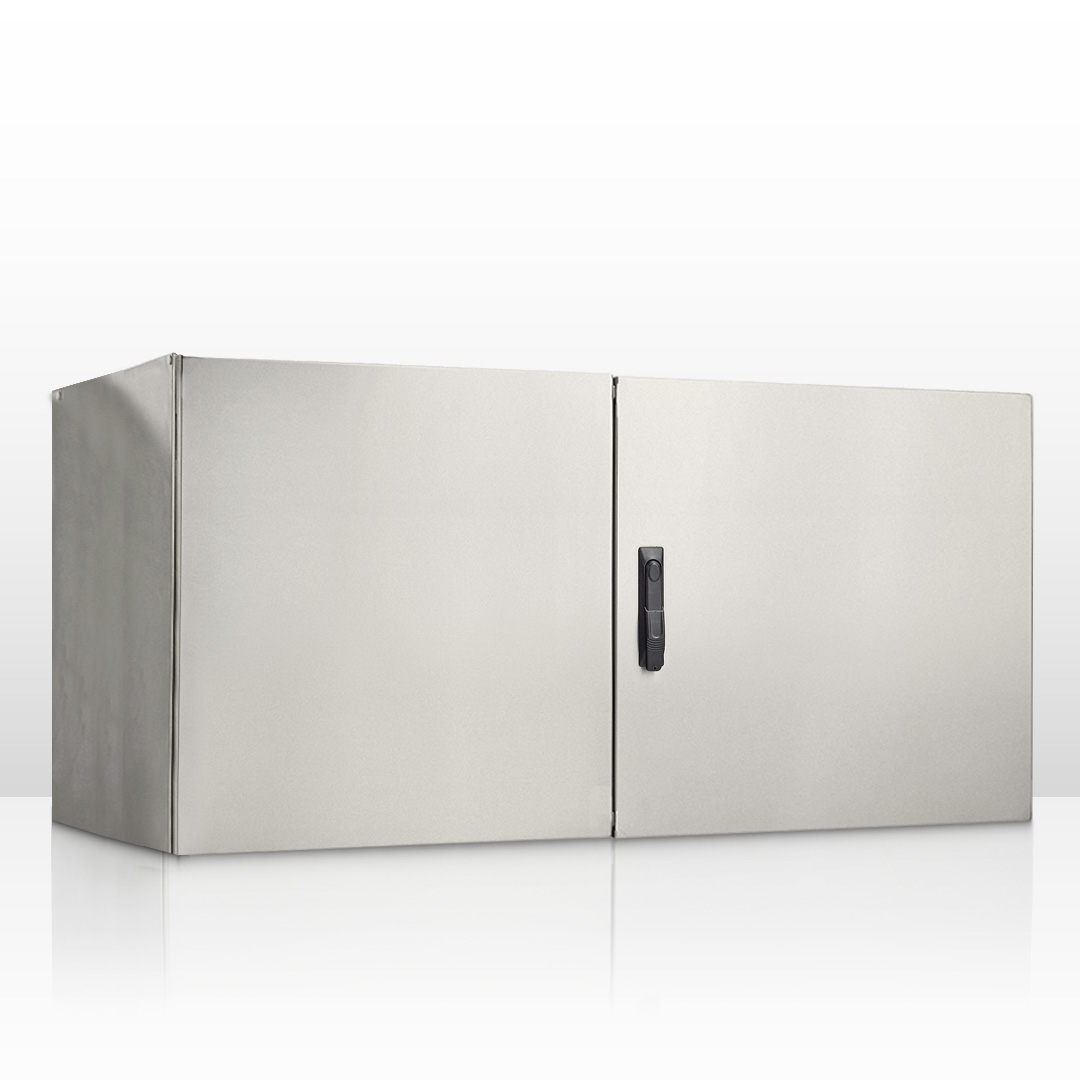

IP55 316ss Electrical Enclosure Sizes – Landscape Orientation

Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-SSL4010030400 x 1000 x 3003-PointPDFPDF.dwgIP-SSID40100IP-SSRH10030
IP-SSL4010040400 x 1000 x 4003-PointPDFPDF.dwgIP-SSID40100IP-SSRH10040
IP-SSL6010030600 x 1000 x 3003-PointPDFPDF.dwgIP-SSID60100IP-SSRH10030
IP-SSL6010040600 x 1000 x 4003-PointPDFPDF.dwgIP-SSID60100IP-SSRH10040
IP-SSL4012030400 x 1200 x 3003-PointPDFPDF.dwg-IP-SSRH12030
IP-SSL4012040400 x 1200 x 4003-PointPDFPDF.dwg-IP-SSRH12040
IP-SSL6012030600 x 1200 x 3003-PointPDFPDF.dwg-IP-SSRH12030
IP-SSL6012040600 x 1200 x 4003-PointPDFPDF.dwg-IP-SSRH12040
