Stainless Steel Sloping Roof Electrical Enclosure

Stainless Steel Sloping Roof Electrical Enclosures

Why use a sloping roof enclosure?

Choose a sloping roof enclosure to prevent build-up of dust, debris and waste material. Stainless Steel 30° Sloping Roof Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material.

They are suitable for internal and external electrical installations for industrial, infrastructure, commercial, communications, defence, marine, food and beverage applications (IP69K Stainless Steel Hygienic Locks are also available). All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.

SINGLE DOOR, Stainless Steel IP66 Sloping Roof Enclosures – SSSR-1

The SSSR range of grade 316/316L stainless steel 30° sloping roof single door enclosures are designed for extreme duty applications.

Features & Specifications of Stainless Steel Sloping Roof Enclosures

Protection: Complies with IP66 IK10, NEMA 4x (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.


– Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Enclosure Body:

The robust monoblock body with sloping roof is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting and accessories. The roof consists of a sloped roof design that protrudes past the seal, flush with the front of the door face.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is fabricated using galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.

Incorporates many advanced features as standard inclusions

  • Fabricated using grade 316 stainless steel
  • Incorporates flat sealing face to improve seal life
  • Includes door cable rails
  • Includes ‘nutsert rivnuts’ for mounting brackets and accessories to retain IP rating
  • Includes mounting points for accessories including inner door escutcheons etc.

Quick Quote

6 + 11 =

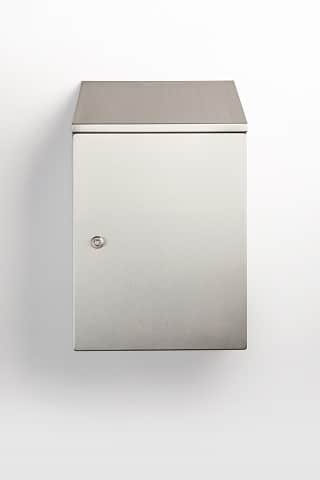

Stainless Steel Sloped Roof Enclosure
Stainless Steel Sloped Roof Enclosure - Open

IP66 Sloping Roof Enclosure Sizes

Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner Door
IP-SSSR302015300 x 200 x 1501PDFPDF.dwgIP-SSID3020
IP-SSSR303015300 x 300 x 1501PDFPDF.dwgIP-SSID3030
IP-SSSR403020400 x 300 x 2001PDFPDF.dwgIP-SSID4030
IP-SSSR404020400 x 400 x 2001PDFPDF.dwgIP-SSID4040
IP-SSSR504020500 x 400 x 2001PDFPDF.dwgIP-SSID5040
IP-SSSR504025500 x 400 x 2501PDFPDF.dwgIP-SSID5040
IP-SSSR505025500 x 500 x 2501PDFPDF.dwgIP-SSID5050
IP-SSSR604025600 x 400 x 2502PDFPDF.dwgIP-SSID6040
IP-SSSR606030600 x 600 x 3002PDFPDF.dwgIP-SSID6060
IP-SSSR806030800 x 600 x 3002PDFPDF.dwgIP-SSID8060
IP-SSSR808030800 x 800 x 3002PDFPDF.dwgIP-SSID8080
IP-SSSR10070401000 x 700 x 4002PDFPDF.dwgIP-SSID10070
IP-SSSR10080301000 x 800 x 3002PDFPDF.dwgIP-SSID10080
