Aluminium Electrical Enclosures are designed to house low voltage electrical equipment including switchgear and controlgear assemblies. Our aluminium electrical enclosures are manufactured to the highest standards using world-class international manufacturing facilities in Europe. The aluminium range is fabricated using Marine Grade Aluminium and powder coated. They comply to IEC/EN 62208 and IEC/EN/AS 60529 up to IP66 IK10. IP Enclosures electrical enclosures incorporate many advanced design features as standard inclusions and have been chosen by many organisations as their standard electrical enclosure system.

IP66 Aluminium Electrical Enclosures

The A1 range of aluminium electrical enclosures are fabricated from marine grade aluminium and are rated for protection up to IP66. They are suitable for heavy duty applications.

Features & Specifications

Protection: IP66 IK10

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, UL, RoHS, CE, UKCA

Material:

– Body: 1.2mm to 1.5mm marine grade aluminium
– Door: 1.5mm marine grade aluminium
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

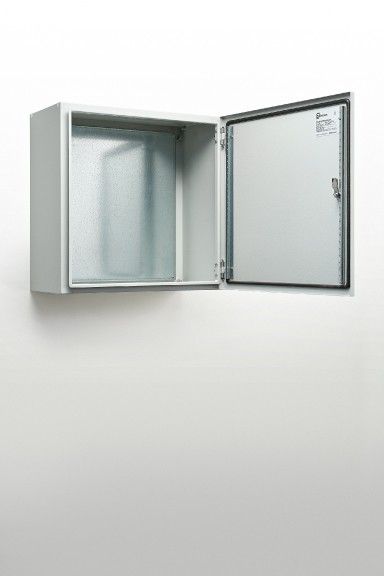

The robust monoblock body is fabricated using marine grade aluminium (1.2mm-1.5mm). Flat face sealing surfaces are provided to increase seal life. Integral device plate mounts, M6 earth studs and welded mounting feet are incorporated. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm marine grade aluminium and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-1374-T 2021-PTC-1162-2
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1
UL: Listing Number E534557
