Stainless Steel Free Standing Electrical Cabinets

Stainless Steel Floor Standing Electrical Cabinets

Stainless steel floor standing electrical cabinets for low voltage switchgear and controlgear assemblies are suitable for general industrial applications.

IP55 Stainless Steel Floor Standing Electrical Cabinets

Features and Specifications

Protection: IP55 IK10

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS, CE, UKCA

IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Rated Current: 630A |1600A | 4000A
Main Circuit Short-Time Current Withstand: 30kA/1sec | 40kA/1sec | 60kA/1sec
Distribution Circuit Short-Time Current Withstand: 25kA/1sec | 36kA/1sec | 50kA/1sec
Auxilliary Circuit Short-Time Current Withstand: – | 30kA | 40kA/1sec | 36kA/1sec
Neutral Circuit Short-Time Current Withstand: – | 25kA/1sec | 36kA/1sec
Protection Circuit Short-Time Current Withstand: 18kA/1sec | 25kA/1sec | 36kA/1sec
Rated Conditional Short Circuit Current: 36kA/630A – 30kA/400A | 45kA/1600A – 36kA/1250A – 36kA/1000A | 65kA/4000A – 55kA/3200A – 45kA/2500A – 40kA/2000A
Rated Frequency: 50Hz

Material:

– Main Frame: 2.0mm Grade 316 Stainless Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Grade 316 Stainless Steel
– Front Door: 2.0mm Grade 316 Stainless Steel
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM

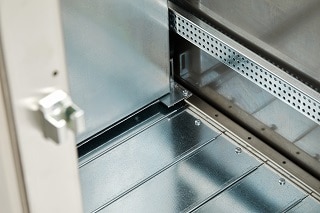

Enclosure Main Frame:

The robust modular main structure is fabricated using 2.0mm Grade 316 Stainless Steel W Profile system with 20mm hole pattern according to DIN43660.

Enclosure Door:

The robust door is fabricated using 2.0mm Grade 316 Stainless Steel and incorporates four concealed reversible hinges allowing left or right hand opening. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and provision for a document pocket.

Enclosure Side, Rear and Roof Panels:

Removable panels are fabricated using 1.2mm Grade 316 Stainless Steel.

Enclosure Base:

Base is 100mm

Enclosure Door Seal:

High quality EPDM replaceable door seal.

Enclosure Lock:

4 point locking system with key-lock swing handle.

Enclosure Device Mounting Plate:

The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.

Earthing:

All panels are earthed to provide earthing continuity.

Surface Finish:

0.4 micron Ra surface brushed finish

Accessories & Baying Kits:

A full range of accessories are available including baying kits.

IP-MFSBAYKIT – Baying Kit to suit Freestanding Cabinets
– Inner Doors to suit Freestanding Cabinets.
– Shelf Kits to suit Freestanding Cabinets.
– Laptop Drawers to suit Freestanding Cabinets.
– Cover Plates & Partial Mounting Plates to suit Freestanding Cabinets.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low Voltage Switchgear and Controlgear Assemblies: Certificate 0406176-
TSE-02/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Products are manufactured to Quality, Safety and Environmental standards.

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

4 + 5 =

Stainless Steel Free Standing Electrical Cabinet

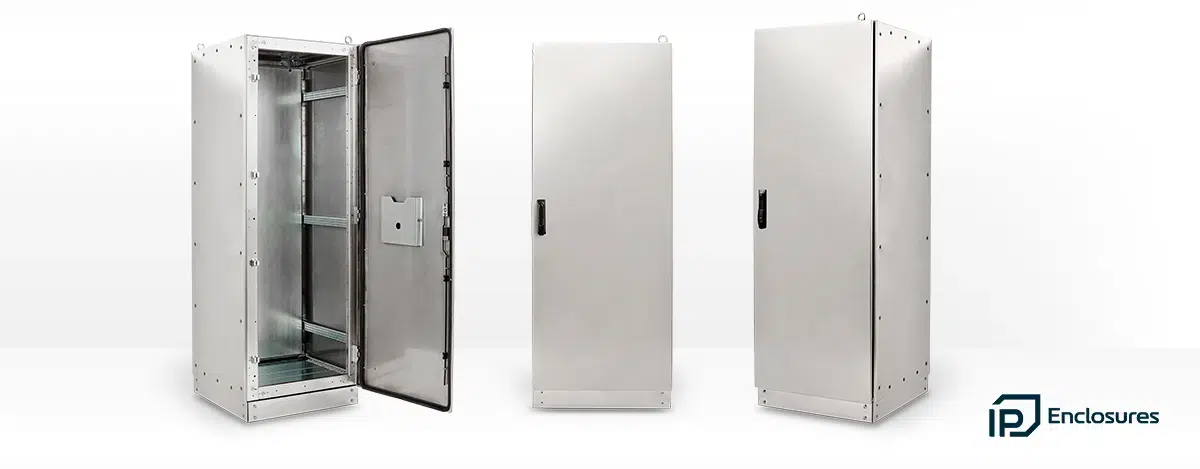

IP55 Stainless Steel Free Standing Electrical Cabinet

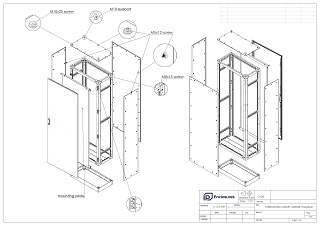

Stainless Steel Free Standing Electrical Cabinet Assembly Diagram

Stainless Steel Free Standing Electrical Cabinet Sizes



Part NumberEnclosure Size (mm)Data SheetDrawingDrawingAccessories
SKUH x W x DPDFPDF.dwgInner Door
IP-MFSS1624040-KIT1620 x 400 x 400PDFPDF.dwgIP-MFSSID16240
IP-MFSS1626040-KIT1620 x 600 x 400PDFPDF.dwgIP-MFSSID16260
IP-MFSS1626060-KIT1620 x 600 x 600PDFPDF.dwgIP-MFSSID16260
IP-MFSS1626080-KIT1620 x 600 x 800PDFPDF.dwgIP-MFSSID16260
IP-MFSS1628040-KIT1620 x 800 x 400PDFPDF.dwgIP-MFSSID16280
IP-MFSS1628080-KIT1620 x 800 x 800PDFPDF.dwgIP-MFSSID16280
IP-MFSS16210080-KIT1620 x 1000 x 800PDFPDF.dwgIP-MFSSID162100
IP-MFSS1864040-KIT1860 x 400 x 400PDFPDF.dwgIP-MFSSID18640
IP-MFSS1866040-KIT1860 x 600 x 400PDFPDF.dwgIP-MFSSID18660
IP-MFSS1866060-KIT1860 x 600 x 600PDFPDF.dwgIP-MFSSID18660
IP-MFSS1866080-KIT1860 x 600 x 800PDFPDF.dwgIP-MFSSID18660
IP-MFSS1868040-KIT1860 x 800 x 400PDFPDF.dwgIP-MFSSID18680
IP-MFSS1868060-KIT1860 x 800 x 600PDFPDF.dwgIP-MFSSID18680
IP-MFSS1868080-KIT1860 x 800 x 800PDFPDF.dwgIP-MFSSID18680
IP-MFSS18610060-KIT1860 x 1000 x 600PDFPDF.dwgIP-MFSSID186100
IP-MFSS18610080-KIT1860 x 1000 x 800PDFPDF.dwgIP-MFSSID186100
IP-MFSS18612040-KIT1860 x 1200 x 400PDFPDF.dwgIP-MFSS186120
IP-MFSS18612060-KIT1860 x 1200 x 600PDFPDF.dwgIP-MFSS186120
IP-MFSS18612080-KIT1860 x 1200 x 800PDFPDF.dwgIP-MFSS186120
IP-MFSS2024040-KIT2020 x 400 x 400PDFPDF.dwgIP-MFSSID20240
IP-MFSS2026040-KIT2020 x 600 x 400PDFPDF.dwgIP-MFSSID20260
IP-MFSS2026060-KIT2020 x 600 x 600PDFPDF.dwgIP-MFSSID20260
IP-MFSS2026080-KIT2020 x 600 x 800PDFPDF.dwgIP-MFSSID20260
IP-MFSS2028040-KIT2020 x 800 x 400PDFPDF.dwgIP-MFSSID20280
IP-MFSS2028060-KIT2020 x 800 x 600PDFPDF.dwgIP-MFSSID20280
IP-MFSS2028080-KIT2020 x 800 x 800PDFPDF.dwgIP-MFSSID20280
IP-MFSS20210060-KIT2020 x 1000 x 600PDFPDF.dwgIP-MFSSID202100
IP-MFSS20210080-KIT2020 x 1000 x 800PDFPDF.dwgIP-MFSSID202100
IP-MFSS20212080-KIT2020 x 1200 x 800PDFPDF.dwgIP-MFSSID202120
