Electrical Enclosure Fans and Filters

Ventilation Filter Fans and Filter Vents

IP Enclosures provide a wide range of ventilation products for electrical enclosures to dissipate heat loads efficiently. Fans are designed to provide filtered ambient air into the enclosure while ventilating hot exhaust air. The air circulation assists with heat dissipation and assists to prevent formation of heat pockets. Fans should be located at the bottom of the enclosure with vents located at the top, ideally diagonally opposite, to assist natural airflow and to maximise effectiveness. Care should be taken when positioning equipment and components to ensure airflow is not impacted. Fans and vents include filters to prevent contaminants entering the enclosure while allowing clean air flow. To minimise dust and moisture entering the enclosure, the fan and vent should be configured to force air in to pressurise the enclosure rather than suck it out causing a vacuum. The range consists of a modern Italian grill design with minimal external projection and allows for easy filter maintenance due to a front-opening grill. The configuration of the grill, seal gasket and filter mat provide an IP54 protection with an optional upgrade to high performance filters providing IP55 protection. IP Enclosures ventilation products are manufactured to the highest quality in Europe. Optional RAL 9005 Black Fans and Filters are available on request. Contact our electrical enclosures specialists for assistance to calculate the required volumetric flow (m³/h).

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

8 + 13 =

Filter Vents

SizeFILTER VENTData SheetDrawingDrawingStep File
mmSKUPDFPDF.dwg.STP
114mm x 114mmIP-V1000.PDF.PDF.DWG.STP
150mm x 150mmIP-V2000.PDF.PDF.DWG.STP
204mm x 204mmIP-V3000.pdf.pdf.DWG.STP
250mm x 250mmIP-V4000.PDF.PDF.DWG.STP
325mm x 325mmIP-V5000.pdf.pdf.DWG.STP
IP-V1000 Filter Vent

Colour: Grey

IP-V1000 Filter – 114 x 114 x 27 (mm)

    Features Unit IP-V1000
    Air flow rate (free blow) m³/h
    Flow rate with exit filter m³/h
    Power supply V/Hz
    Dimensions HxLxP mm 114x114x27
    Power consumption W
    Current consumption A
    Overcurrent consumption
    Electric connection
    Duty cycle
    Operating temperature °C – 10 / +70 (+14 / +158)
    Protection degree/class IP54
    Noise level dB(A)
    Flow direction
    Bearing
    Filter mat (Eurovent) G2
    Service life (at 40°C) hr
    Material ABS UL94V-0 Color RAL7035
    Wall thickness mm 1.2-2.4
    Gasket foam seal gasket
    Weight (with packaging) kg 0.09 (0.11)
    Package dimensions mm 125x125x35
    Montaggio fast clip-on
    Cut-Out dimensions mm 92×92
    Conformity/Approvals CE



    IP-V2000 Filter – 150 x 150 x 27 (mm)

      Features Unit IP-V2000
      Air flow rate (free blow) m³/h
      Flow rate with exit filter m³/h
      Power supply V/Hz
      Dimensions HxLxP mm 150x150x37
      Power consumption W
      Current consumption A
      Overcurrent consumption
      Electric connection
      Duty cycle
      Operating temperature °C – 10 / +70 (+14 / +158)
      Protection degree/class IP54
      Noise level dB(A)
      Flow direction
      Bearing
      Filter mat (Eurovent) G3
      Service life (at 40°C) hr
      Material ABS UL94V-0 Color RAL7035
      Wall thickness mm 1.2-2.4
      Gasket foam seal gasket
      Weight (with packaging) kg 0.18 (0.23)
      Package dimensions mm 165x165x45
      Montaggio fast clip-on
      Cut-Out dimensions mm 124×124
      Conformity/Approvals CE

      IP-V3000 Filter – 204 x 204 x 37 (mm)

        Features Unit IP-V3000
        Air flow rate (free blow) m³/h
        Flow rate with exit filter m³/h
        Power supply V/Hz
        Dimensions HxLxP mm 204x204x37
        Power consumption W
        Current consumption A
        Overcurrent consumption
        Electric connection
        Duty cycle
        Operating temperature °C – 10 / +70 (+14 / +158)
        Protection degree/class IP54
        Noise level dB(A)
        Flow direction
        Bearing
        Filter mat (Eurovent) G3
        Service life (at 40°C) hr
        Material ABS UL94V-0 Color RAL7035
        Wall thickness mm 1.2-2.4
        Gasket foam seal gasket
        Weight (with packaging) kg 0.32(0.42)
        Package dimensions mm 220x220x43
        Montaggio fast clip-on
        Cut-Out dimensions mm 177×177
        Conformity/Approvals CE

        IP-V4000 Filter – 250 x 250 x 38 (mm)

          Features Unit IP-V4000
          Air flow rate (free blow) m³/h
          Flow rate with exit filter m³/h
          Power supply V/Hz
          Dimensions HxLxP mm 250x250x38
          Power consumption W
          Current consumption A
          Overcurrent consumption
          Electric connection
          Duty cycle
          Operating temperature °C – 10 / +70 (+14 / +158)
          Protection degree/class IP54
          Noise level dB(A)
          Flow direction
          Bearing
          Filter mat (Eurovent) G3
          Service life (at 40°C) hr
          Material ABS UL94V-0 Color RAL7035
          Wall thickness mm 1.2-2.4
          Gasket foam seal gasket
          Weight (with packaging) kg 0.52(0.62)
          Package dimensions mm 270x270x45
          Montaggio fast clip-on
          Cut-Out dimensions mm 224×224
          Conformity/Approvals CE

          IP-V5000 Filter – 325 x 325 x 42 (mm)

            Features Unit IP-V5000
            Air flow rate (free blow) m³/h
            Flow rate with exit filter m³/h
            Power supply V/Hz
            Dimensions HxLxP mm 325x325x42
            Power consumption W
            Current consumption A
            Overcurrent consumption
            Electric connection
            Duty cycle
            Operating temperature °C – 10 / +70 (+14 / +158)
            Protection degree/class IP54
            Noise level dB(A)
            Flow direction
            Bearing
            Filter mat (Eurovent) G3
            Service life (at 40°C) hr
            Material ABS UL94V-0 Color RAL7035
            Wall thickness mm 1.2-2.4
            Gasket foam seal gasket
            Weight (with packaging) kg 0.90 (1.04)
            Package dimensions mm 340x340x50
            Montaggio fast clip-on
            Cut-Out dimensions mm 291×291
            Conformity/Approvals CE

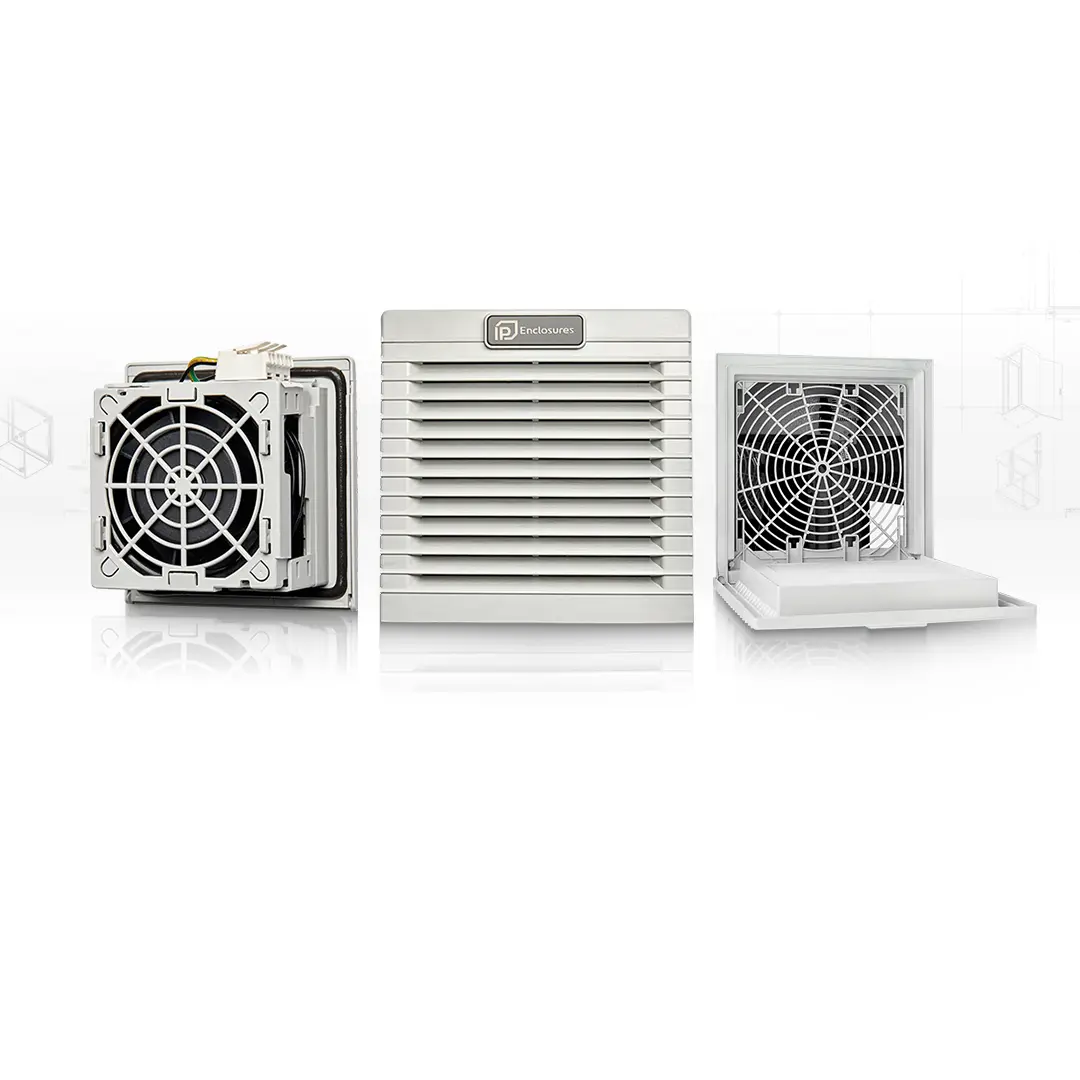

            Filter Fans

            SizeAir Flow RateFILTER FANData SheetDrawingDrawingStep File
            mmm3/hrSKUPDFPDFDWG.STP
            114mm x 114mm25 m3/hrIP-V1100PDFPDFDWG.STP
            150mm x 150mm58 m3/hrIP-V2200PDFPDFDWG.STP
            204mm x 204mm115 m3/hrIP-V3200PDFPDFDWG.STP
            250mm x 250mm125 m3/hrIP-V4200PDFPDFDWG.STP
            250mm x 250mm255 m3/hrIP-V4300PDFPDFDWG.STP
            250mm x 250mm410 m3/hrIP-V4400PDFPDFDWG.STP
            325mm x 325mm550 m3/hrIP-V5400PDFPDFDWG.STP
            325mm x 325mm700 m3/hrIP-V5500PDFPDFDWG.STP
            IP-V1100 Fan Filter

            Colour: Grey

            IP-V1100 Fan Filter – 26m3/hr 114 x 114 x 73 (mm)



            Features Unit IP-V1100
            Air flow rate (free blow) m³/h 26 (30)
            Flow rate with exit filter m³/h 15 (18)
            Power supply V/Hz 230 / 50-60
            Dimensions HxLxP mm 114x114x73
            Power consumption W 13 (12)
            Current consumption A 0.10 (0.08)
            Overcurrent consumption impedance
            Electric connection 3-poles spring terminals
            Duty cycle 100%
            Operating temperature °C – 10 / +70 (+14 / +158)
            Protection degree/class IP54/Class I
            Noise level dB(A) 30 (35)
            Flow direction reversible: default factory setting outside-in
            Bearing ball
            Filter mat (Eurovent) G2
            Service life (at 40°C) hr 50 000
            Material ABS UL94V-0 Color RAL7035
            Wall thickness mm 1.2-2.4
            Gasket foam seal gasket
            Weight (with packaging) kg 0.41 (0.46)
            Package dimensions mm 125x125x80
            Montaggio fast clip-on
            Cut-out dimensions mm 92×92
            Conformity/Approvals CE

            IP-V2200 Fan Filter – 58m3/hr 150 x 150 x 86 (mm)

              Features Unit IP-V2200
              Air flow rate (free blow) m³/h 58 (64)
              Flow rate with exit filter m³/h 43 (48)
              Power supply V/Hz 230 / 50-60
              Dimensions HxLxP mm 150x150x86
              Power consumption W 22 (21)
              Current consumption A 0.14 (0.12)
              Overcurrent consumption impedance
              Electric connection 3-poles spring terminals
              Duty cycle 100%
              Operating temperature °C – 10 / +70 (+14 / +158)
              Protection degree/class IP54/Class I
              Noise level dB(A) 43 (49)
              Flow direction reversible: default factory setting outside-in
              Bearing ball
              Filter mat (Eurovent) G3
              Service life (at 40°C) hr 50 000
              Material ABS UL94V-0 Color RAL7035
              Wall thickness mm 1.2-2.4
              Gasket foam seal gasket
              Weight (with packaging) kg 0.76 (0.83)
              Package dimensions mm 165x165x90
              Montaggio fast clip-on
              Cut-out dimensions mm 125×125
              Conformity/Approvals CE

              IP-V3200 Fan Filter – 115m3/hr 204 x 204 x 104 (mm)

                Features Unit IP-V3200
                Air flow rate (free blow) m³/h 115 (125)
                Flow rate with exit filter m³/h 84 (97)
                Power supply V/Hz 230 / 50-60
                Dimensions HxLxP mm 204x204x104
                Power consumption W 22 (21)
                Current consumption A 0.14 (0.12)
                Overcurrent consumption impedance
                Electric connection 3-poles spring terminals
                Duty cycle 100%
                Operating temperature °C – 10 / +70 (+14 / +158)
                Protection degree/class IP54/Class I
                Noise level dB(A) 43 (49)
                Flow direction reversible: default factory setting outside-in
                Bearing ball
                Filter mat (Eurovent) G3
                Service life (at 40°C) hr 50 000
                Material ABS UL94V-0 Color RAL7035
                Wall thickness mm 1.2-2.4
                Gasket foam seal gasket
                Weight (with packaging) kg 0.98 (1.18)
                Package dimensions mm 220x220x110
                Montaggio fast clip-on
                Cut-Out dimensions mm 177×177
                Conformity/Approvals CE

                IP-V4200 Fan Filter – 125m3/hr 250 x 250 x 107 (mm)

                  Features Unit IP-V4200
                  Air flow rate (free blow) m³/h 125 (135)
                  Flow rate with exit filter m³/h 102 (112)
                  Power supply V/Hz 230 / 50-60
                  Dimensions HxLxP mm 250x250x107
                  Power consumption W 22 (21)
                  Current consumption A 0.14 (0.12)
                  Overcurrent consumption impedance
                  Electric connection 3-poles spring terminals
                  Duty cycle 100%
                  Operating temperature °C – 10 / +70 (+14 / +158)
                  Protection degree/class IP54/Class I
                  Noise level dB(A) 43 (49)
                  Flow direction reversible: default factory setting outside-in
                  Bearing ball
                  Filter mat (Eurovent) G3
                  Service life (at 40°C) hr 50 000
                  Material ABS UL94V-0 Color RAL7035
                  Wall thickness mm 1.2-2.4
                  Gasket foam seal gasket
                  Weight (with packaging) kg 1.30 (1.50)
                  Package dimensions mm 270x270x165
                  Montaggio fast clip-on
                  Cut-Out dimensions mm 224×224
                  Conformity/Approvals CE



                  IP-V4300 Fan Filter – 255m3/hr 250 x 250 x 128 (mm)

                    Features Unit IP-V4300
                    Air flow rate (free blow) m³/h 255 (290)
                    Flow rate with exit filter m³/h 202 (235)
                    Power supply V/Hz 230 / 50-60
                    Dimensions HxLxP mm 250x250x128
                    Power consumption W 40 (38)
                    Current consumption A 0.17 (0.16)
                    Overcurrent consumption thermal
                    Electric connection 3-poles spring terminals
                    Duty cycle 100%
                    Operating temperature °C – 10 / +70 (+14 / +158)
                    Protection degree/class IP54/Class I
                    Noise level dB(A) 53 (58)
                    Flow direction reversible: default factory setting outside-in
                    Bearing ball
                    Filter mat (Eurovent) G3
                    Service life (at 40°C) hr 50 000
                    Material ABS UL94V-0 Color RAL7035
                    Wall thickness mm 1.2-2.4
                    Gasket foam seal gasket
                    Weight (with packaging) kg 1.72 (1.92)
                    Package dimensions mm 270x270x165
                    Montaggio fast clip-on
                    Cut-Out dimensions mm 224×224
                    Conformity/Approvals CE





                    IP-V5400 Fan Filter – 550m3/hr 325 x 325 x 140 (mm)

                    Features Unit IP-V5400
                    Air flow rate (free blow) m³/h 550 (620)
                    Flow rate with exit filter m³/h 405 (450)
                    Power supply V/Hz 230 / 50-60
                    Dimensions HxLxP mm 325x325x140
                    Power consumption W 70 (90)
                    Current consumption A 0.40 (0.38)
                    Overcurrent consumption thermal
                    Electric connection 3-poles spring terminals
                    Duty cycle 100%
                    Operating temperature °C – 10 / +70 (+14 / +158)
                    Protection degree/class IP54/Class I
                    Noise level dB(A) 65 (68)
                    Flow direction reversible: default factory setting outside-in
                    Bearing ball
                    Filter mat (Eurovent) G3
                    Service life (at 40°C) hr 50 000
                    Material ABS UL94V-0 Color RAL7035
                    Wall thickness mm 1.2-2.4
                    Gasket foam seal gasket
                    Weight (with packaging) kg 3.00 (3.25)
                    Package dimensions mm 340x340x180
                    Montaggio fast clip-on
                    Cut-Out dimensions mm 291×291
                    Conformity/Approvals CE



                    Replacement Filter Mats

                    SizeFILTER MATDescription
                    mmSKU
                    114mm x 114mmIP-VF1Replacement Filter Mat for IP-V1000/1100 114 X 114 Fans & Filters
                    114mm x 114mmIP-VF1XHigh Efficiency (G3) Filter Mat for IP-V1000/1100 114 X 114 Fans & Filters
                    150mm x 150mmIP-VF2Replacement Filter Mat for IP-V2000/2200 150 X 150 Fans & Filters
                    150mm x 150mmIP-VF2XHigh Efficiency (G4) Filter Mat for IP-V2000/2200 150 X 150 Fans & Filters
                    204mm x 204mmIP-VF3Replacement Filter Mat for IP-V3000/3200 204 X 204 Fans & Filters
                    204mm x 204mmIP-VF3XHigh Efficiency (G4) Filter Mat for IP-V3000/3200 204 X 204 Fans & Filters
                    250mm X 250mmIP-VF4Replacement Filter Mat for IP-V4000/4200/4300 250 X 250 Fans & Filters
                    250mm X 250mmIP-VF4XHigh Efficiency (G4) Filter Mat for IP-V4000/4200/4300 250 X 250 Fans & Filters
                    325mm x 325mmIP-VF5Replacement Filter Mat for IP-V5000/5400/5500 325 X 325 Fans & Filters
                    325mm x 325mmIP-VF5XHigh Efficiency (G4) Filter Mat for IP-V5000/5400/5500 325 X 325 Fans & Filters
                    Filter Maintenance 2

                    Step 1. Open Grille

                    Filter Maintenance 4

                    Step 2. Remove Filter Mat

                    Filter Maintenance 3

                    Step 3. Insert New Filter Mat

                    Filter Maintenance 1

                    Step 4. Close Grille

                    Roof Fans and Vents

                    Electrical Cabinet Roof Fans and Vents

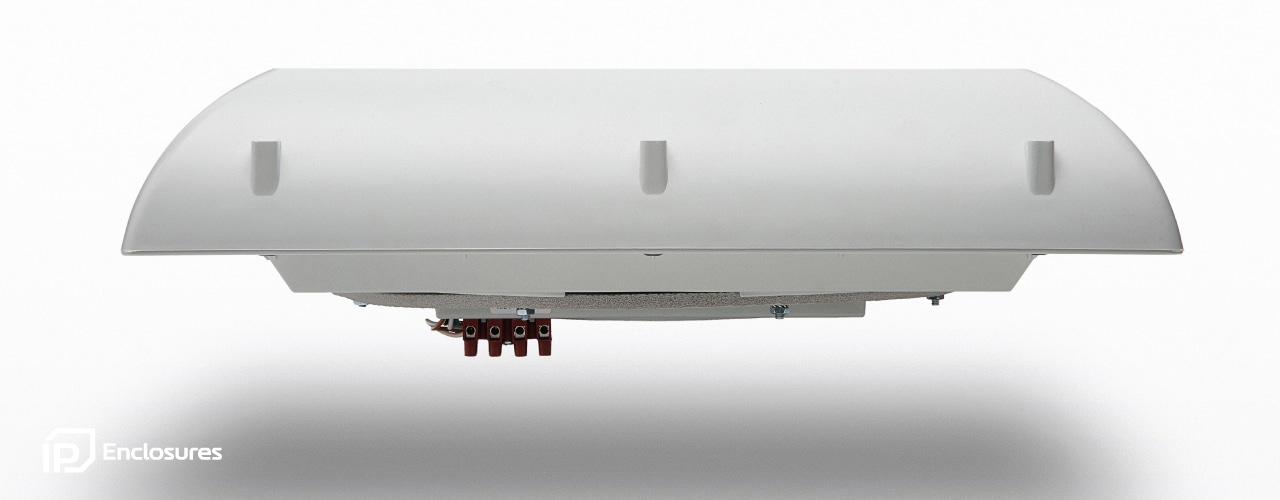

                    IP-RV1 Roof Vent (No Fan) – 400 x 350 x 102 (mm)

                    Features Unit IP-RV1
                    Air flow rate (free blow) m³/h
                    Flow rate with exit filter m³/h
                    Power supply V/Hz
                    Dimensions HxLxP mm 400x350x102
                    Power consumption W
                    Current consumption A
                    Overcurrent protection
                    Electric connection
                    Duty cycle
                    Operating temperature °C
                    Protection degree enclosure side
                    Protection class
                    Noise level dB(A)
                    Flow direction
                    Bearing
                    Service life (at 40°C) hr
                    Material ABS UL94V-0 Color RAL7035
                    Gasket polythene
                    Weight (with packaging) kg 2.30(2.50)
                    Package dimensions mm 410x360x130
                    Mounting screws
                    conformity/Approvals CE



                    IP-RFV1 Roof Fan and Vent – 600m³/h 400 x 350 x 102 (mm)

                    Features Unit IP-RFV1
                    Air flow rate (free blow) m³/h 600(625)
                    Flow rate with exit filter m³/h 430(450)
                    Power supply V/Hz 230/50-60
                    Dimensions HxLxP mm 400x350x102
                    Power consumption W 70(90)
                    Current consumption A 0.32(0.40)
                    Overcurrent protection thermal
                    Electric connection 4-pole terminal 2.5 mm²
                    Duty cycle 100%
                    Operating temperature °C -10/+70
                    Protection degree enclosure side IP44
                    Protection class Class I
                    Noise level dB(A) 64(65)
                    Flow direction inside-out
                    Bearing ball
                    Service life (at 40°C) hr 50.000
                    Material ABS UL94V-0 Color RAL7035
                    Gasket polythene
                    Weight (with packaging) kg 3.65(3.85)
                    Package dimensions mm 410x360x130
                    Mounting screws
                    conformity/Approvals CE



                    IP-RFV2 Roof Fan and Vent – 860m³/h 400 x 350 x 102 (mm)

                    Features Unit IP-RFV2
                    Air flow rate (free blow) m³/h 860(950)
                    Flow rate with exit filter m³/h 580(640)
                    Power supply V/Hz 230/50-60
                    Dimensions HxLxP mm 400x350x102
                    Power consumption W 85(115)
                    Current consumption A 0.43(0.50)
                    Overcurrent protection thermal
                    Electric connection 4-pole terminal 2.5 mm²
                    Duty cycle 100%
                    Operating temperature °C -10/+70
                    Protection degree enclosure side IP44
                    Protection class Class I
                    Noise level dB(A) 72(73)
                    Flow direction inside-out
                    Bearing ball
                    Service life (at 40°C) hr 50.000
                    Material ABS UL94V-0 Color RAL7035
                    Gasket polythene
                    Weight (with packaging) kg 4.00(4.20)
                    Package dimensions mm 410x360x130
                    Mounting screws
                    conformity/Approvals CE



                    IP-RFV3 Roof Fan and Vent – 1000m³/h 400 x 350 x 102 (mm)

                    Features Unit IP-RFV3
                    Air flow rate (free blow) m³/h 1000(1050)
                    Flow rate with exit filter m³/h 700(720)
                    Power supply V/Hz 230/50-60
                    Dimensions HxLxP mm 400x350x102
                    Power consumption W 120(170)
                    Current consumption A 0.50(0.75)
                    Overcurrent protection thermal
                    Electric connection 4-pole terminal 2.5 mm²
                    Duty cycle 100%
                    Operating temperature °C -10/+70
                    Protection degree enclosure side IP44
                    Protection class Class I
                    Noise level dB(A) 72(73)
                    Flow direction inside-out
                    Bearing ball
                    Service life (at 40°C) hr 50.000
                    Material ABS UL94V-0 Color RAL7035
                    Gasket polythene
                    Weight (with packaging) kg 4.75(4.95)
                    Package dimensions mm 410x360x130
                    Mounting screws
                    conformity/Approvals CE



                    Powder-Coated Louvre Vents

                    Powder-Coated steel louvre vents can be supplied loose or fitted into electrical enclosures.

                    Part Number SKUSize H x W (mm)
                    IP-PSLV10075100 x 75
                    IP-PSLV130130130 x 130
                    Louvre Vent
                    Louvre Vent

                    Stainless Steel Louvre Vents

                    Grade 316 Stainless Steel louvre vents can be supplied loose or fitted into electrical enclosures.

                    Part Number SKUSize H x W (mm)
                    IP-SSLV10075100 x 75
                    IP-SSLV130130130 x 130
                    Louvre Vent Stainless Steel
                    Louvre Vent Stainless Steel
