IP69K Electrical Enclosures

IP69K Pushbutton Enclosures

The HPB range of IP69K Hygienic Pushbutton Enclosures are designed for applications within the food & beverage, pharmaceutical and other industries that require high hygienic standards.

Stainless Steel IP69K Pushbutton Enclosures

IP69K hygienic pushbutton enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.

Features & Specifications

Protection: IP66 IK08, IP69K, Nema Type 1, 12, 4, 4x.

Standard: EN/AS60529, ISO20653, UL508A, RoHS, CE

Material:

– Enclosure Body: 1.0mm Grade 304 Stainless Steel
– Enclosure Door: 1.0mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant

Enclosure Body:

The body is fabricated using 1.0mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.

Holes:

Ø 22.5

Cover:

The cover is fabricated using 1.0mm Grade 304 Stainless Steel and includes a clip-in silicone seal

Enclosure Seal:

Blue silicone seal, FDA compliant for food production areas.

Accessories:

Hygienic Wall Mounting Brackets. SKU: IP-HWMB (Set of 2)

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

3 + 1 =

IP69K Pushbutton Enclosure Sizes

Part Number SizeNumber of HolesHole CentresUseable DepthDatasheetDrawingDrawing
SKUH x W x D (mm)Dia.22.5mmmmmmPDFPDF.dwg
IP-HPB190 x 90 x 901-75PDFPDFPDF
IP-HPB2140 x 90 x 9025575PDFPDFPDF
IP-HPB3200 x 90 x 9035575PDFPDFPDF
IP-HPB4280 x 90 x 9046075PDFPDFPDF

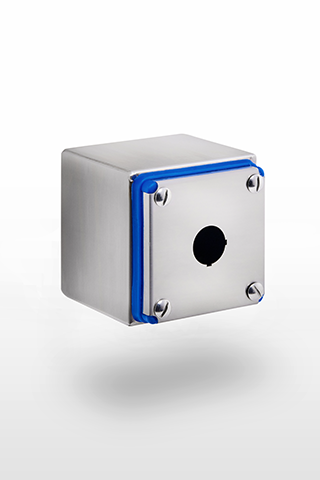

1 Hole Pushbutton Enclosure
(IP-HPB1)

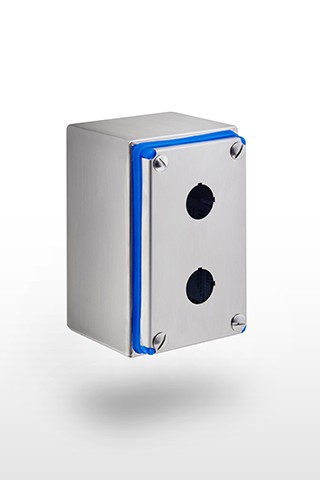

2 Hole Pushbutton Enclosure
(IP-HPB2)

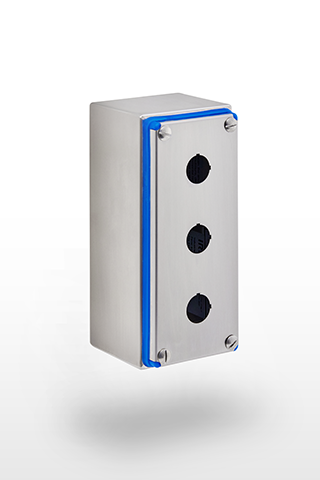

3 Hole Pushbutton Enclosure
(IP-HPB3)

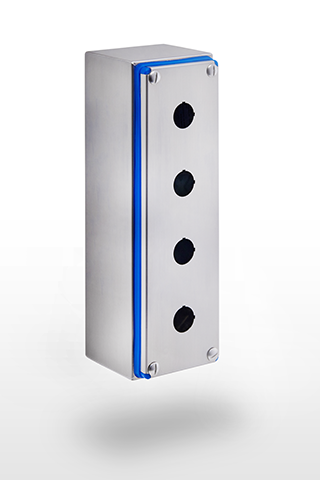

4 Hole Pushbutton Enclosure
(IP-HPB4)
