Field Cabinet

Field Cabinets – Steel

Plinth-Mounted Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.

Features and Specifications

​Protection: IP66 IK10 (Non-ventilated); IP55 IK10 (Ventilated)

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, CE, UKCA

Material:

– Body and Plinth: 2.0mm galvanised steel sheet
– Doors: 2.0mm galvanised steel sheet
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 3.0mm aluminium
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 2.0mm galvanised steel sheet. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 3.0 mm galvanised steel split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).

Doors:

The front and rear doors are fabricated using 2.0mm galvanised steel sheet and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.

19″ Data Rack Rails:

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Locks:

Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

3mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour:

RAL7035 Grey. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 2009.33.02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

3 + 1 =

Field Cabinet

Field Cabinets (Non-Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-1077562-018RU IP66 Field Cabinet 1075H x 750W x 620D (Non-Ventilated)PDFPDF.dwg
IP-1077580-018RU IP66 Field Cabinet 1075H x 750W x 800D (Non-Ventilated)PDFPDF.dwg
IP-1377562-024RU IP66 Field Cabinet 1375H x 750W x 620D (Non-Ventilated)PDFPDF.dwg
IP-1377580-024RU IP66 Field Cabinet 1375H x 750W x 800D (Non-Ventilated)PDFPDF.dwg
IP-13775100-024RU IP66 Field Cabinet 1375H x 750W x 1000D (Non-Ventilated)PDFPDF.dwg
IP-1677562-030RU IP66 Field Cabinet 1675H x 750W x 620D (Non-Ventilated)PDFPDF.dwg
IP-1677580-030RU IP66 Field Cabinet 1675H x 750W x 800D (Non-Ventilated)PDFPDF.dwg
IP-16775100-030RU IP66 Field Cabinet 1675H x 750W x 1000D (Non-Ventilated)PDFPDF.dwg
IP-1977562-036RU IP66 Field Cabinet 1975H x 750W x 620D (Non-Ventilated)PDFPDF.dwg
IP-1977580-036RU IP66 Field Cabinet 1975H x 750W x 800D (Non-Ventilated)PDFPDF.dwg
IP-19775100-036RU IP66 Field Cabinet 1975H x 750W x 1000D (Non-Ventilated)PDFPDF.dwg
IP-2277562-042RU IP66 Field Cabinet 2275H x 750W x 620D (Non-Ventilated)PDFPDF.dwg
IP-2277580-042RU IP66 Field Cabinet 2275H x 750W x 800D (Non-Ventilated)PDFPDF.dwg

Field Cabinets (Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-107756218RU IP66 Field Cabinet 1075H x 750W x 620D (Ventilated)PDFPDF.dwg
IP-107758018RU IP66 Field Cabinet 1075H x 750W x 800D (Ventilated)PDFPDF.dwg
IP-137756224RU IP66 Field Cabinet 1375H x 750W x 620D (Ventilated)PDFPDF.dwg
IP-137758024RU IP66 Field Cabinet 1375H x 750W x 800D (Ventilated)PDFPDF.dwg
IP-1377510024RU IP66 Field Cabinet 1375H x 750W x 1000D (Ventilated)PDFPDF.dwg
IP-167756230RU IP66 Field Cabinet 1675H x 750W x 620D (Ventilated)PDFPDF.dwg
IP-167758030RU IP66 Field Cabinet 1675H x 750W x 800D (Ventilated)PDFPDF.dwg
IP-1677510030RU IP66 Field Cabinet 1675H x 750W x 1000D (Ventilated)PDFPDF.dwg
IP-197756236RU IP66 Field Cabinet 1975H x 750W x 620D (Ventilated)PDFPDF.dwg
IP-197758036RU IP66 Field Cabinet 1975H x 750W x 800D (Ventilated)PDFPDF.dwg
IP-1977510036RU IP66 Field Cabinet 1975H x 750W x 1000D (Ventilated)PDFPDF.dwg
IP-227756242RU IP66 Field Cabinet 2275H x 750W x 620D (Ventilated)PDFPDF.dwg
IP-227758042RU IP66 Field Cabinet 2275H x 750W x 800D (Ventilated)PDFPDF.dwg

Accessories

Part Number -SKUDescription
IP-M6SCREW-CAGENUTM6 Cage Nut & Screw (Pack of 50)
IP-FCDRAWER Laptop Drawer to suit 750W x 620D Field Cabinet
IP-FCSHL7562 Light Duty Shelf to suit 750W x 620D Field Cabinet
IP-FCSHH7562Heavy Duty Shelf to suit 750W x 620D (250kg max. load)
IP-FCSHH7580Heavy Duty Shelf to suit 750W x 800D (250kg max. load)
IP-13762-DPDevice Plate to suit 1375H x 620D Field Cabinet (Side Mounted)
IP-16762-DPDevice Plate to suit 1675H x 620D Field Cabinet (Side Mounted)
IP-19762-DPDevice Plate to suit 1975H x 620D Field Cabinet (Side Mounted)
IP-12RUDP12RU Rack Mounted Device Mounting Plate
IP-18RUDP18RU Rack Mounted Device Mounting Plate

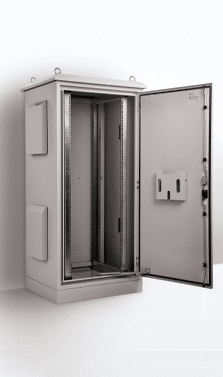

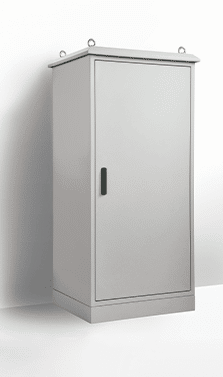

Field Cabinet

(Non-Ventilated)

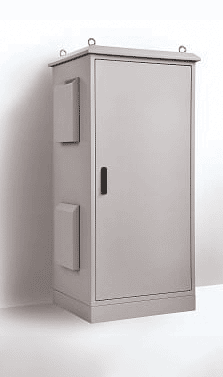

Field cabinet ventilated

(Ventilated)

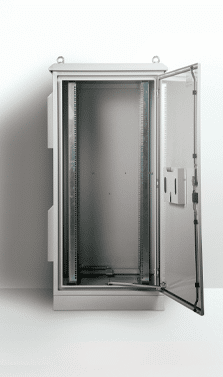

Field Cabinet
