IP Enclosures LED Lights

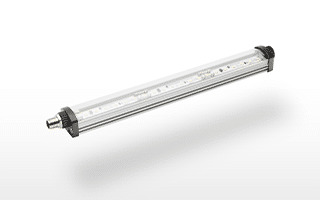

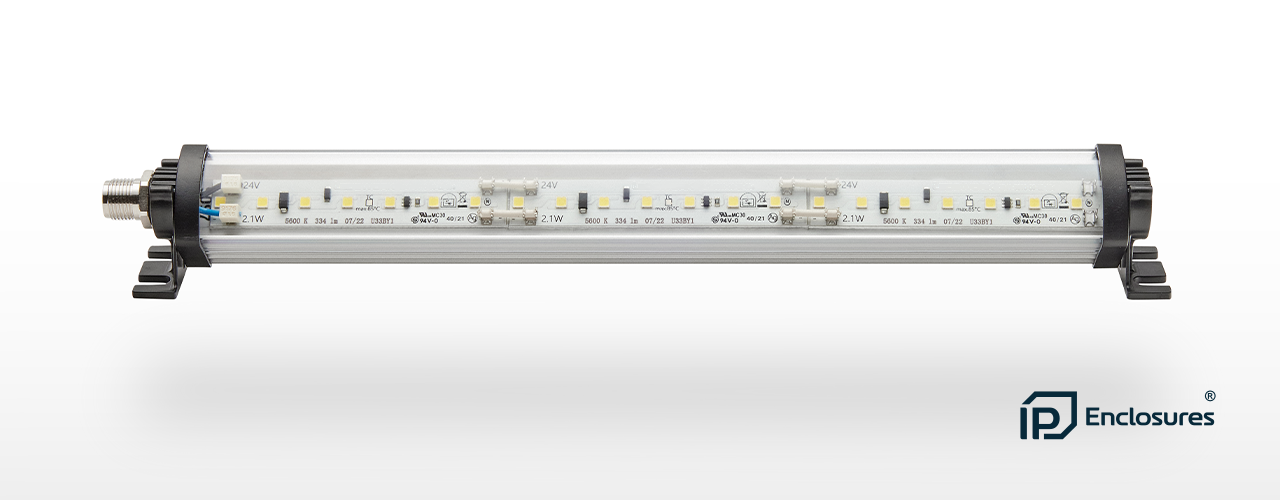

LED Lighting Solutions for Electrical Enclosures

IP Enclosures provide high quality LED surface mounted luminaires for electrical enclosures.



Features & Specifications:

  • Very bright LED luminaire
  • 24V DC
  • Homogenous, uniform, & flicker-free illumination
  • Slim.almost non-protruding LED luminaire; 25 mm high
  • Clear cover; polycarbonate-material; shatterproof
  • Available in clear cover glare suppression
  • Quick installation (single solution/electrically interlinkable; cascadable)
  • Robust aluminium housing for heat dissipation
  • Made in Germany
LED Enclosure Light 1
Ordering SKUVoltageLamp luminous flux
Dimensions (mm)
IP-LED01-24VDC24VDC630 Lm
180(L) X 26(W) X 31 (H)
IP-LED02-24VDC24VDC945 Lm
260(L) X 26(W) X 31(H)
IP-LED03-24VDC24VDC1260 Lm
350(L) x 26(W) x 31 (H)
IP-LED04-24VDC24VDC1890 Lm
520(L) x 26(W) x 31 (H)
IP-LED05-24VDC24VDC2835 Lm760(L) X 26(W) X 31 (H)
IP-LED06-24VDC24VDC3780 Lm1020(L) X 26(W) X 31 (H)

LED Surface-mounted luminaire —237mm, 24VDC



Features Unit IP-LED01-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W

145

Lamp Luminous flux

Lamp type

Lm

630

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour Daylight white (5200-5700K)
Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~4 W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 180(L) X 26(W) X 31 (H)
Net weight kg 0.18
Gross weight kg 0.33
Conformity/Certifications CE  cruus  File n° E301228

LED Surface-mounted luminaire — 317mm, 24VDC

5

Features Unit IP-LED02-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W

146

Lamp Luminous flux

Lamp type

Lm

945

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour

Daylight white (5200-5700K)



Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~6 W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 260(L) X 26(W) X 31(H)
Net weight kg 0.20
Gross weight kg 0.35
Conformity/Certifications CE  cruus  File n° E301228

LED Surface-mounted luminaire — 407mm, 24VDC



Features Unit IP-LED03-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W 145

Lamp Luminous flux

Lamp type

Lm

1260

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour

Daylight white (5200-5700K)



Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~8 W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 350(L) x 26(W) x 31 (H)
Net weight kg 0.30
Gross weight kg 0.45
Conformity/Certifications CE  cruus  File n° E301228



LED Surface-mounted luminaire — 577mm, 24VDC



Features Unit IP-LED04-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W 145

Lamp Luminous flux

Lamp type

Lm

1890

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour

Daylight white (5200-5700K)



Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~13 W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 520(L) x 26(W) x 31 (H)
Net weight kg 0.35
Gross weight kg 0.60
Conformity/Certifications CE  cruus  File n° E301228

LED Surface-mounted luminaire — 817mm, 24VDC



Features Unit IP-LED05-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W 145

Lamp Luminous flux

Lamp type

Lm

2835

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour

Daylight white (5200-5700K)



Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~19W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 520(L) x 26(W) x 31 (H)
Net weight kg 0.50
Gross weight kg 0.80
Conformity/Certifications CE  cruus  File n° E301228

LED Surface-mounted luminaire — 1077mm, 24VDC



Features Unit IP-LED06-24VDC
Power supply V/Hz 24V DC
Luminosity Lm/W 145

Lamp Luminous flux

Lamp type

Lm

3780

LED Surface-mounted Luminaire

Luminat SMD LED
Light distribution Direct
Light Colour

Daylight white (5200-5700K)



Beam angle (optics) 120°
Colour Rendering Ra >85
Power consumption ~24 W
Service life >60 000h
Electrical connection M12 A-type encoded
Housing material Aluminium
Cover material

Polycarbonate; clear;

shatterproof

Protection degree/class IP54 / Class IIII
Operating temperature °C (°F) -10…+ 60°C
Mounting Swivel / Planar mounting
Installation Electrical Interlinked
Dimensions mm 1020(L) X 26(W) X 31(H)
Net weight kg 0.70
Gross weight kg 1.00
Conformity/Certifications CE  cruus  File n° E301228
