FIBOX Terminal Boxes

FIBOX is a global leader in electrical enclosure solutions. For almost 60 years, FIBOX have been pioneering electrical enclosure solutions. FIBOX developed the world’s first modular polycarbonate enclosure and continue to design and innovate. Today, FIBOX are one of the largest electrical enclosure manufacturers in the world and are the leading manufacturer of non-metallic electrical enclosure solutions. FIBOX and IP Enclosures have partnered together to serve customers in Australia with a full range of premium-quality terminal boxes packed with features, all for the protection of electrical and electronic components and systems that help keep the world operating.

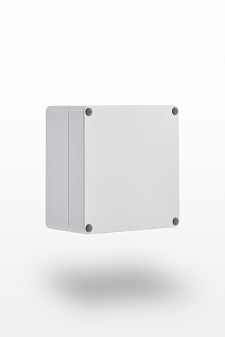

FIBOX Euronord Terminal Boxes

Features & Specifications

Protection: IP66, IP67 (Polycarbonate & ABS); IP66 (Polyester)
Impact Resistance: IK07/IK08 (Polycarbonate); IK07 (ABS); IK08 (Polyester)
Standards: IEC/EN 60529, IEC/EN 62208, IEC/EN 61439

Parameters:

Electrical Insulation: Fully Insulated
Halogen Free (DIN/VDE 0472, Part 815): Yes
UV Resistance: UL 746C (Polycarbonate & Polyester)
Flammability Rating: UL 94 V0 (Polycarbonate & Polyester); UL 94 HB (ABS)
Glow Wire Test (IEC 60695): 960C (Polycarbonate & Polyester); 650C (ABS)
Temperature °C: -40 to 80 (Polycarbonate); -40 to 60 (ABS); -20 to 95 (Polyester)
Colour: RAL7035 Grey
Seal Material: Polyurethane
