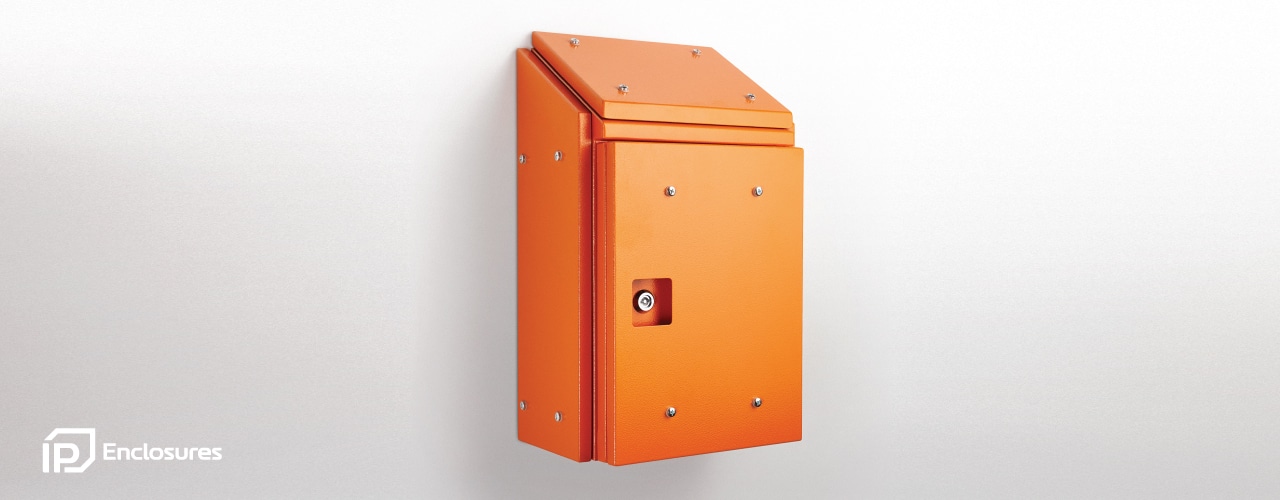

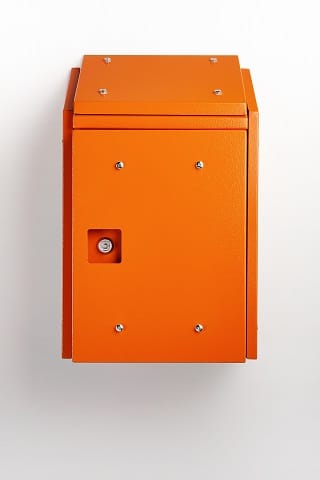

IP66 Sloping Roof Enclosures with Shields

The SSR range of sloping roof single door enclosures are designed for heavy duty applications.

Features & Specifications of Sloping Roof Enclosures

Protection: Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 2.0mm galvanised steel sheet
– Gland Plate: 2.0mm galvanised steel sheet
– Door: 2.0mm galvanised steel sheet
– Device Mounting Plate: galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body with 30° sloping roof is fabricated from 2.0mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included. A galvanised steel gland plate is also incorporated into the bottom face. The roof consist of a 30° sloped roof design that protrudes past the seal, flush with the front of the door face. Integral device plate mounts and M6 earth stud is provided.

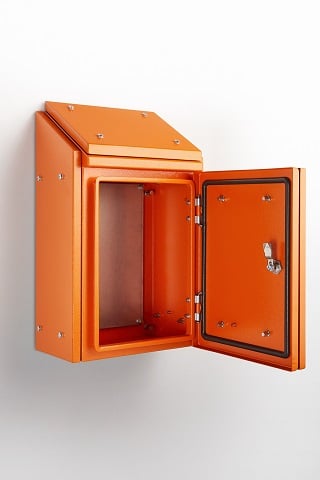

Enclosure Door:

The surface mounted door is 2.0mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Enclosure Lock:

A full range of locking solutions are available upon request.
– 3mm double bit insert quarter turn lock with key.

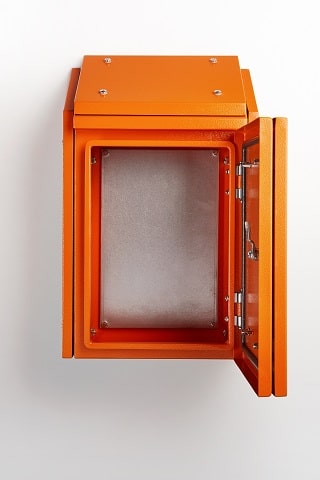

Device Mounting Plate:

The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

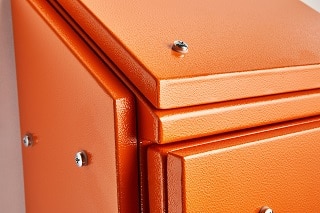

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Standard Colour RAL7035 Grey

Colour RAL2000 Orange
