Fire Pump Controller Enclosure

Fire Pump Controller Enclosures

IP Enclosures provide powder-coated, galvanised steel fire pump controller enclosures. They are suitable for heavy duty applications. Empty enclosures are provided to suppliers of fire pump packages. We work with suppliers to develop standard packages using our range of standard enclosures and can also provide custom fire pump controller enclosures to suit customer specifications. A range of options and accessories are also available.

Features & Specifications

Protection: Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Material:

– Body: 1.2mm galvanised steel sheet (up to 700x500x250) 1.5mm galvanised steel sheet (800x600x200 and above)
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is galvanised steel sheet (1.2mm-1.5mm). Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Pre-fitted blind nutserts for mounting brackets and accessories removes the need for drilling. This retains the integrity of the IP rating. Integral device plate mounts and M6 earth stud are included. A galvanised steel gland plate is also incorporated into the bottom face.

Enclosure Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Enclosure Lock:

A full range of locking solutions are available upon request.
– Steel enclosures <1000mm high have 3mm double bit insert quarter turn lock with key.
– Enclosures >1000mm high have 3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL3001 (R13 Signal Red).

Quick Quote

6 + 13 =

Fire Pump Controller Enclosure - Open
Part NumberEnclosure Size (mm)Colour
SKUH x W x DRAL3001 (R13 Signal Red)
IP-302015RED300 x 200 x 150RAL3001 (R13 Signal Red)
IP-303015RED300 x 300 x 150RAL3001 (R13 Signal Red)
IP-303020RED300 x 300 x 200RAL3001 (R13 Signal Red)
IP-403015RED400 x 300 x 150RAL3001 (R13 Signal Red)
IP-403020RED400 x 300 x 200RAL3001 (R13 Signal Red)
IP-404020RED400 x 400 x 200RAL3001 (R13 Signal Red)
IP-503015RED500 x 300 x 150RAL3001 (R13 Signal Red)
IP-503020RED500 x 300 x 200RAL3001 (R13 Signal Red)
IP-504020RED500 x 400 x 200RAL3001 (R13 Signal Red)
IP-504025RED500 x 400 x 250RAL3001 (R13 Signal Red)
IP-505020RED500 x 500 x 200RAL3001 (R13 Signal Red)
IP-505025RED500 x 500 x 250RAL3001 (R13 Signal Red)
IP-604020RED600 x 400 x 200RAL3001 (R13 Signal Red)
IP-604025RED600 x 400 x 250RAL3001 (R13 Signal Red)
IP-606020RED600 x 600 x 200RAL3001 (R13 Signal Red)
IP-606030RED600 x 600 x 300RAL3001 (R13 Signal Red)
IP-705020RED700 x 500 x 200RAL3001 (R13 Signal Red)
IP-705025RED700 x 500 x 250RAL3001 (R13 Signal Red)
IP-806020RED800 x 600 x 200RAL3001 (R13 Signal Red)
IP-806025RED800 x 600 x 250RAL3001 (R13 Signal Red)
IP-806030RED800 x 600 x 300RAL3001 (R13 Signal Red)
IP-808020RED800 x 800 x 200RAL3001 (R13 Signal Red)
IP-808030RED800 x 800 x 300RAL3001 (R13 Signal Red)
IP-808040RED800 x 800 x 400RAL3001 (R13 Signal Red)
IP-1006025RED1000 x 600 x 250RAL3001 (R13 Signal Red)
IP-1006030RED1000 x 600 x 300RAL3001 (R13 Signal Red)
IP-1008030RED1000 x 800 x 300RAL3001 (R13 Signal Red)
IP-1008040RED1000 x 800 x 400RAL3001 (R13 Signal Red)
IP-1206030RED1200 x 600 x 300RAL3001 (R13 Signal Red)
IP-1208030RED1200 x 800 x 300RAL3001 (R13 Signal Red)
IP-1208040RED1200 x 800 x 400RAL3001 (R13 Signal Red)

Contact us for all other sizes and custom requirements.

Fire Pump Controller Enclosure 1
Fire Pump Controller Enclosure 2

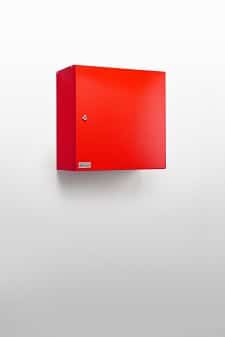

Fire Pump Controller Enclosure 3
